DLC-1500.4d AMPLIFIED LOUDSPEAKER CONTROLLER WITH DANTE & AES67
The DLC-1500.4d delivers a massive 3000W in a 16 pound chassis. Capable of delivering 1500W into 4 or 8-ohms from any channel pair, or 800W into 2 or 4-ohms all channels driven, this 16lb., 2U loudspeaker controller packs new levels of power into minimal rack space. If that weren’t enough, the DLC-1500.4d can drive 70V/100V hi-Z loudspeakers direct - no internal transformer required.
The DLC-1500.4d is equipped with Dante / AES67 audio-over-IP digital I/O making setting up and deploying even complex distributed audio systems painless and bullet-proof. No bulky analog audio cables are required.
The DLC-1500.4d can drive up to 16 Theory 16-ohm loudspeakers in Lo-Z mode, or over 300 (!) in Hi-Z mode. You read that right, 300+ Theory speakers at 7.5W each.
The DLC loudspeaker controllers from Theory can be configured via its on-board web interface accessible via wired Ethernet, or via its on-board Wifi access point and includes matrix mixing, priority audio routing and ducking, parametric EQ, delay, gain and limiter DSP objects to make system optimization easy.
Full API and modules for AMX, Control4, Crestron, Crestron Home, ELAN, Q-SYS, and RTI are available.
NOW AVAILABLE!
The DLC-1500.4d delivers a massive 3000W in a 16 pound chassis. Capable of delivering 1500W into 4 or 8-ohms from any channel pair, or 800W into 2 or 4-ohms all channels driven, this 16lb., 2U loudspeaker controller packs new levels of power into minimal rack space. If that weren’t enough, the DLC-1500.4d can drive 70V/100V hi-Z loudspeakers direct - no internal transformer required.
The DLC-1500.4d is equipped with Dante / AES67 audio-over-IP digital I/O making setting up and deploying even complex distributed audio systems painless and bullet-proof. No bulky analog audio cables are required.
The DLC-1500.4d can drive up to 16 Theory 16-ohm loudspeakers in Lo-Z mode, or over 300 (!) in Hi-Z mode. You read that right, 300+ Theory speakers at 7.5W each.
The DLC loudspeaker controllers from Theory can be configured via its on-board web interface accessible via wired Ethernet, or via its on-board Wifi access point and includes matrix mixing, priority audio routing and ducking, parametric EQ, delay, gain and limiter DSP objects to make system optimization easy.
Full API and modules for AMX, Control4, Crestron, Crestron Home, ELAN, Q-SYS, and RTI are available.
NOW AVAILABLE!
The DLC-1500.4d delivers a massive 3000W in a 16 pound chassis. Capable of delivering 1500W into 4 or 8-ohms from any channel pair, or 800W into 2 or 4-ohms all channels driven, this 16lb., 2U loudspeaker controller packs new levels of power into minimal rack space. If that weren’t enough, the DLC-1500.4d can drive 70V/100V hi-Z loudspeakers direct - no internal transformer required.
The DLC-1500.4d is equipped with Dante / AES67 audio-over-IP digital I/O making setting up and deploying even complex distributed audio systems painless and bullet-proof. No bulky analog audio cables are required.
The DLC-1500.4d can drive up to 16 Theory 16-ohm loudspeakers in Lo-Z mode, or over 300 (!) in Hi-Z mode. You read that right, 300+ Theory speakers at 7.5W each.
The DLC loudspeaker controllers from Theory can be configured via its on-board web interface accessible via wired Ethernet, or via its on-board Wifi access point and includes matrix mixing, priority audio routing and ducking, parametric EQ, delay, gain and limiter DSP objects to make system optimization easy.
Full API and modules for AMX, Control4, Crestron, Crestron Home, ELAN, Q-SYS, and RTI are available.
NOW AVAILABLE!
DLC-1500.4d SPECIFICATIONS
| Description: | 4-Channel Amplified Distribution Loudspeaker Controller with Dante & AES67 |
| 2U Chassis | |
| IP Control via Ethernet or Built-In WiFi Access Point | |
| LoZ BTL Mode | |
| Operation: | LoZ and HiZ (70V/100V) Operation |
| Inputs: | 4 x Balanced Analog Audio |
| 4 x RCA Unbalanced Analog Audio | |
| 1 x S/PDIF Digital Audio | |
| 4 x Dante / AES67 Digital Audio | |
| Outputs: | 4 x Speaker Outputs |
| S/PDIF Digital Audio | |
| 4 x Dante / AES67 Digital Audio | |
| Trigger: | +12VDC |
| Audio Operation: | 48kHz/24-bit |
| On-Board DSP: | 48kHz/32-bit |
| DSP Features: | Loudspeaker Processing For All Theory Models |
| Input Matrix Mixer | |
| 5 Parametric Input EQ Filters | |
| Input Trim | |
| Stereo/Mono Inputs and Zones | |
| Signal Routing Including Priority Automatic Routing | |
| Audio Ducking | |
| 10 Parametric Output EQ Filters | |
| Crossovers | |
| Gain | |
| Delay | |
| Polarity | |
| Peak and RMS Limiters | |
| Frequency Response: | 20Hz-20kHz, +/-0.25dB |
| Power Output: | 2x 1500W (BTL) @ 100V |
| 2x 1200W (BTL) @ 70V | |
| 4x 400W (SE) and 2x 1500W (BTL) @ 8-ohms | |
| 4x 800W (SE) and 2x 1500W (BTL) @ 4-ohms | |
| 4x 800W (SE) @ 2-ohms | |
| Voltage Gain: | Variable |
| Input Sensitivity (selectable): | +14dBu |
| +4dBu | |
| -10dBV (Unbalanced RCA) | |
| Microphone | |
| Power Requirements: | Standby: <1W |
| (1/8 power, all ch. driven): 470W | |
| Idle Noise(A-Wt): | -78dBV |
| Signal to Noise Ratio: | >106dB |
| Distortion (1kHz, 1dB below max output): | <0.02% |
| AC Operation: | 100V-240VAC, 50-60Hz |
| Terminals: | Euroblock Connector with Parallel Output |
| Outdoor Capability: | Indoor Use Only |
| Mounting Points: | Rack Mount Ears Included |
| Finish: | Matte Black |
| Dimensions: | 3.50" H x 19" W x 12.6" D (89mm H x 483mm W x 320mm D) |
| Weight: | 16.8 lbs. (7.62 kg) |
| Included Accessories: | Rack Ears |
DLC USER INTERFACE
DLC-1500.4d DOWNLOADS

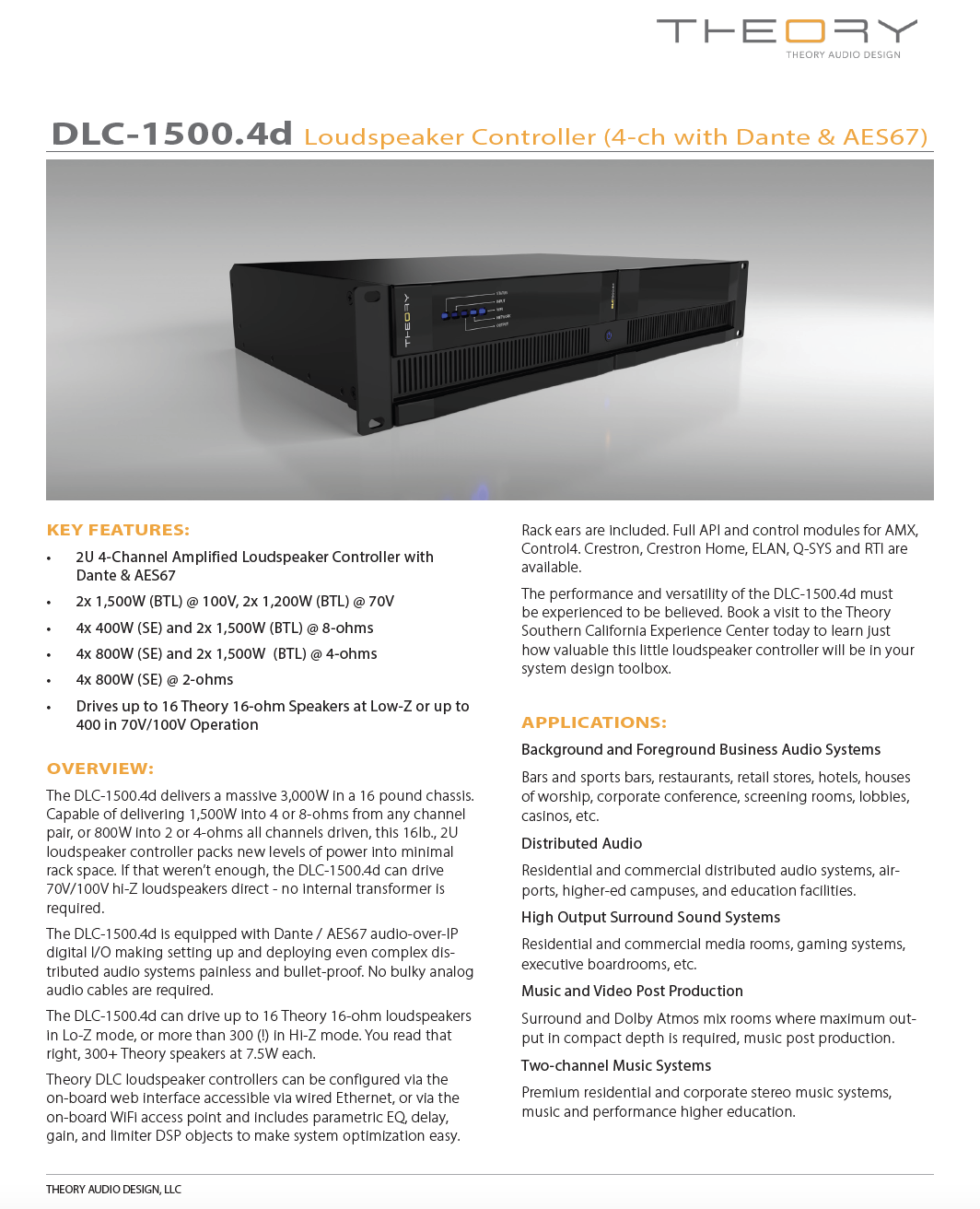

DLC-1500.4d Data Sheet

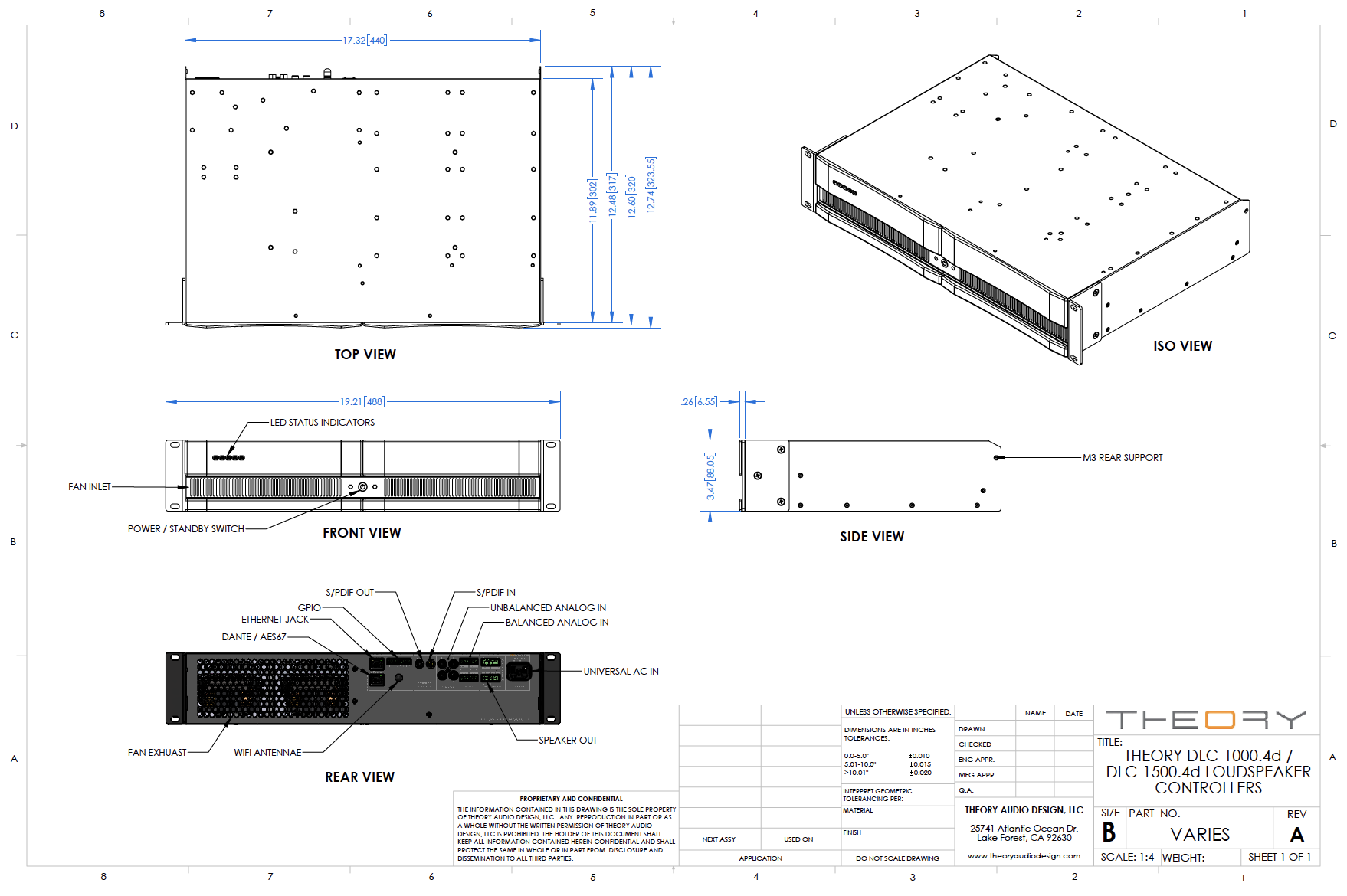

DLC-1500.4d 3-View Drawings
DLC-1500.4d Quick Start Installation Guide
DLC Third Party Control Drivers
DLC-1500.4d GALLERY
DLC-1500.4d 4-Channel Amplified Loudspeaker Controller with Dante & AES67

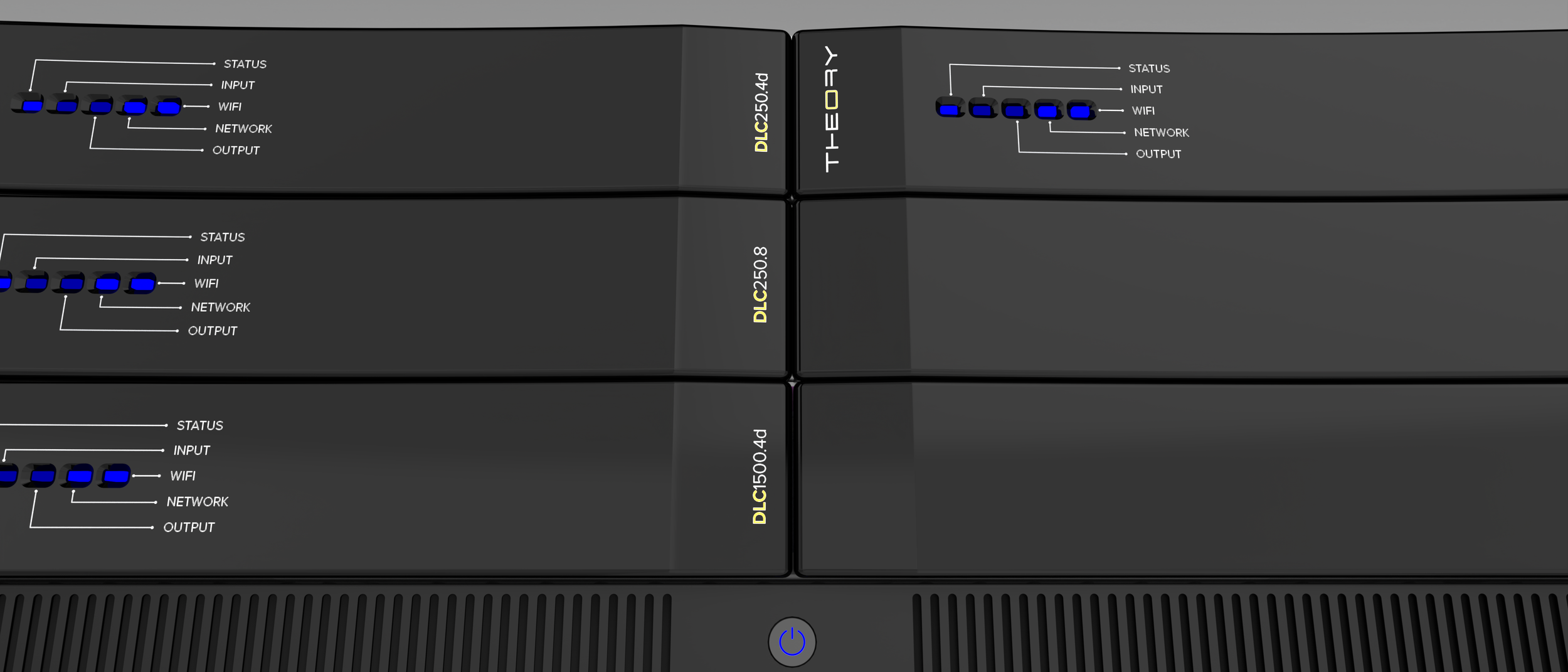

DLC Series 2 Stack
DLC-1500.4d Rear Panel
