sb85 SOUNDBAR
Theory soundbars are unlike any others and are capable of surprising output, clarity and dynamics. Unlike most so-called “soundbars” available today, the sound emanating from a Theory soundbar is big and open, and detached from the soundbar itself. You simply experience big theatrical sound that envelopes you with astonishingly clear and dynamic sound.
Since their introduction in late 2019, reviewers around the world are unanimous: the Theory soundbars are the very best money can buy.
The sb85 is designed to match the width of your 85” TV for an integrated look.
sb85 SPECIFICATIONS
| Description: | High Output Three-Channel Soundbar for 85" TVs |
| Operation: | Passive, Requires 3 Theory Loudspeaker Controller Amp Channels |
| 3 separate Ported Enclosures | |
| DSP Requirements: | Requires Model-Specific Theory-Certified DSP Loudspeaker Processing |
| Drivers: | 6 x 5" Theory Carbon Fiber Low Frequency Drivers |
| 3 x 1.4" Theory Advanced Polymer High Frequency Compression Drivers | |
| Enclosure: | Powder Coated and Anodized Extruded and Machined Aluminum, Fabric Grille |
| Terminals: | Twin Spring-Loaded Push Terminals |
| Outdoor Capability: | Indoor Use Only |
| Mounting Points: | Two Theory VersaSlotTM T-Slots Running Full Height with 4 x M5 Captive Nuts |
| Optional Table Top Stand | |
| Bandwidth | 54Hz -23kHz, -6dB; |
| 46Hz-24kHz, -10dB | |
| Coverage: | 125 Degrees Conical |
| 160 Degrees Conical (-12dB @ 10kHz) | |
| Sensitivity: | 94dB (LF); 108dB (HF) SPL/2.83V/1m |
| Power Handling: | 200W (AES); |
| 400W (Continuous); | |
| 800W (Peak) | |
| Minimum Recommended Power: | 50W rms |
| Maximum Output: | 117dB SPL / 1m per Channel; |
| >124dB Three Channels Driven | |
| Nominal Impedance: | 4-ohms |
| Colors: | Black |
| Dimensions: | 9.5" H x 75.2" W x 3.8" D (241mm H x 1910mm W x 97mm D) |
| Total Installed Depth (Z-clip Mount): | 3.93" D (100mm) Including Z-Clip Mounting Brackets |
| Net Weight: | 72 lbs. (32.7kg) |
| Included Accessories: | Theory Z-Clip Mounting Brackets (male and female) for Flat Surface Mounting |
| Optional Accessories: | sb Table Top Stand Kit |
sb85 ACCESSORIES
TAKE A STAND.
The sb-STAND stand accessory for Theory sb model soundbars and surface mount speakers allows the speakers to stand up on flat surfaces such as TV consoles, tabletops and bookshelves
sb85 DOWNLOADS
sb75 3-View Product Drawing
sb Models Quick Start Installation Guide
sb85 DLC SPEAKER PRESETS
sb85 GALLERY
sb85 High Output Soundbar

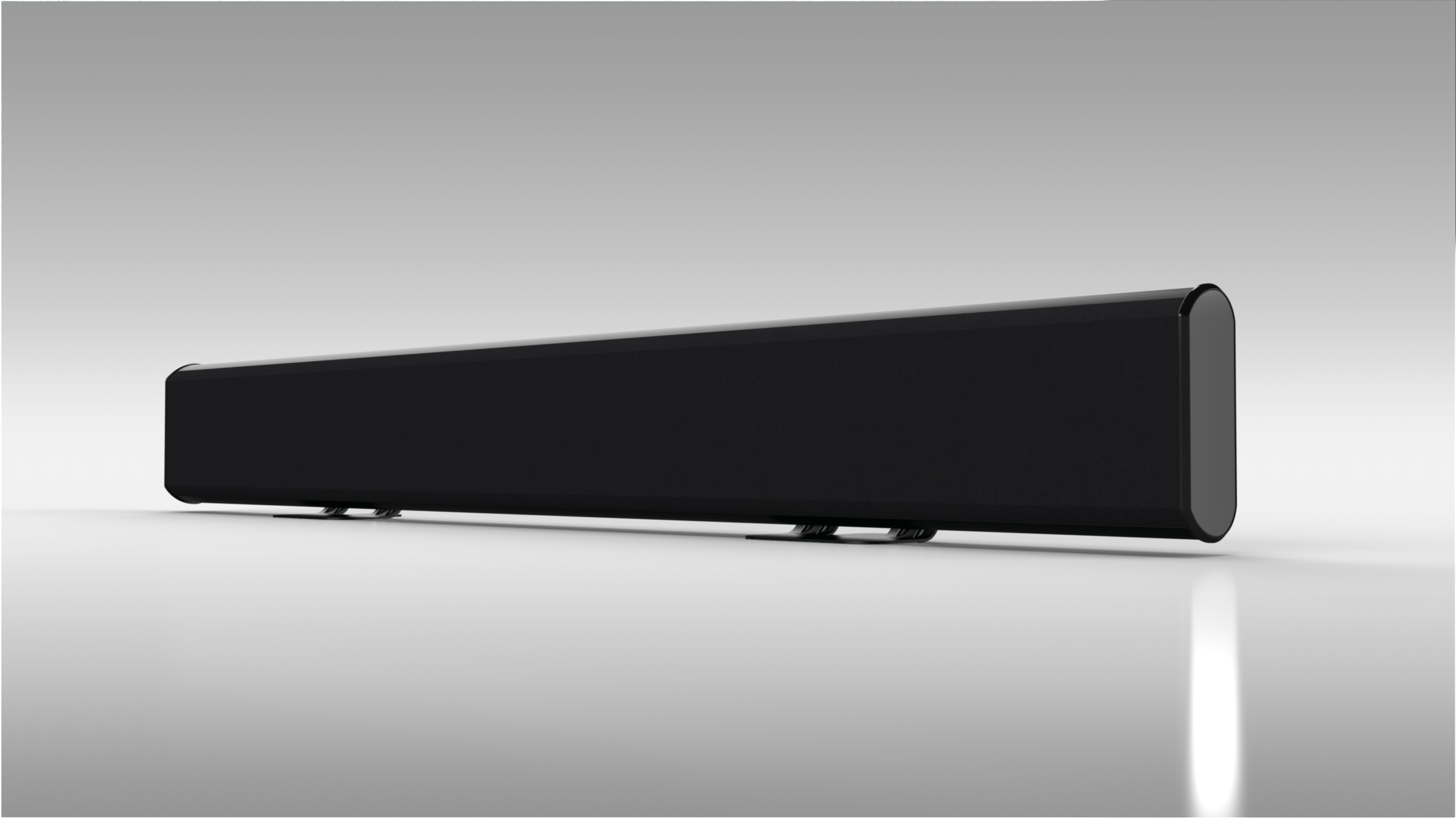

sb85 High Output Soundbar on sb Table Top Stand
