SR-28.2 Dual 8" 2-Way Multi-Use Loudspeaker
The SR-28.2 offers performance, coverage and output similar to the 12” SR-112.2, in a more slender package for applications where form factor is important.
The SR-28.2 features an 80º x 60º elliptical horn with particularly controlled response that insures every seat in the intended coverage area hears the same accurate sound. The sound quality is particularly “hi-fi” in its accuracy and refinement.
Surprisingly compact, the powerful, high-fidelity SR-28.2 won’t impede on aesthetics – it can be installed discretely, and in tighter locations than other sound reinforcement style speakers on the market.
The SR-28.2 was thoughtfully designed from top to bottom including ergonomic handles, multiple fly points, industry-standard mount points, and pole cups.
It is available in black and white, and in passive or active versions depending on the installation need. Upgrades include custom paint matching and weatherizing (of the passive version only).
Optional accessories include the Theory SplitYoke™ Multipurpose Mounting Brackets used to install the SR-28.2 easily on the wall, ceiling, floor (as a monitor), and other surfaces.
Theory’s new SR Series loudspeakers are built-to-order in the U.S. and unite lively dynamics, high maximum output level, and refined acoustic performance. Unlike most sound reinforcement speakers, and in line with the brand’s promise, Theory is raising the performance bar, not only in terms of accuracy of the reproduced sound, but also in sheer output capability.
Capable of astonishing range and output, the compact SR-28.2 will have you rethinking how you design your next portable or installed sound reinforcement project.

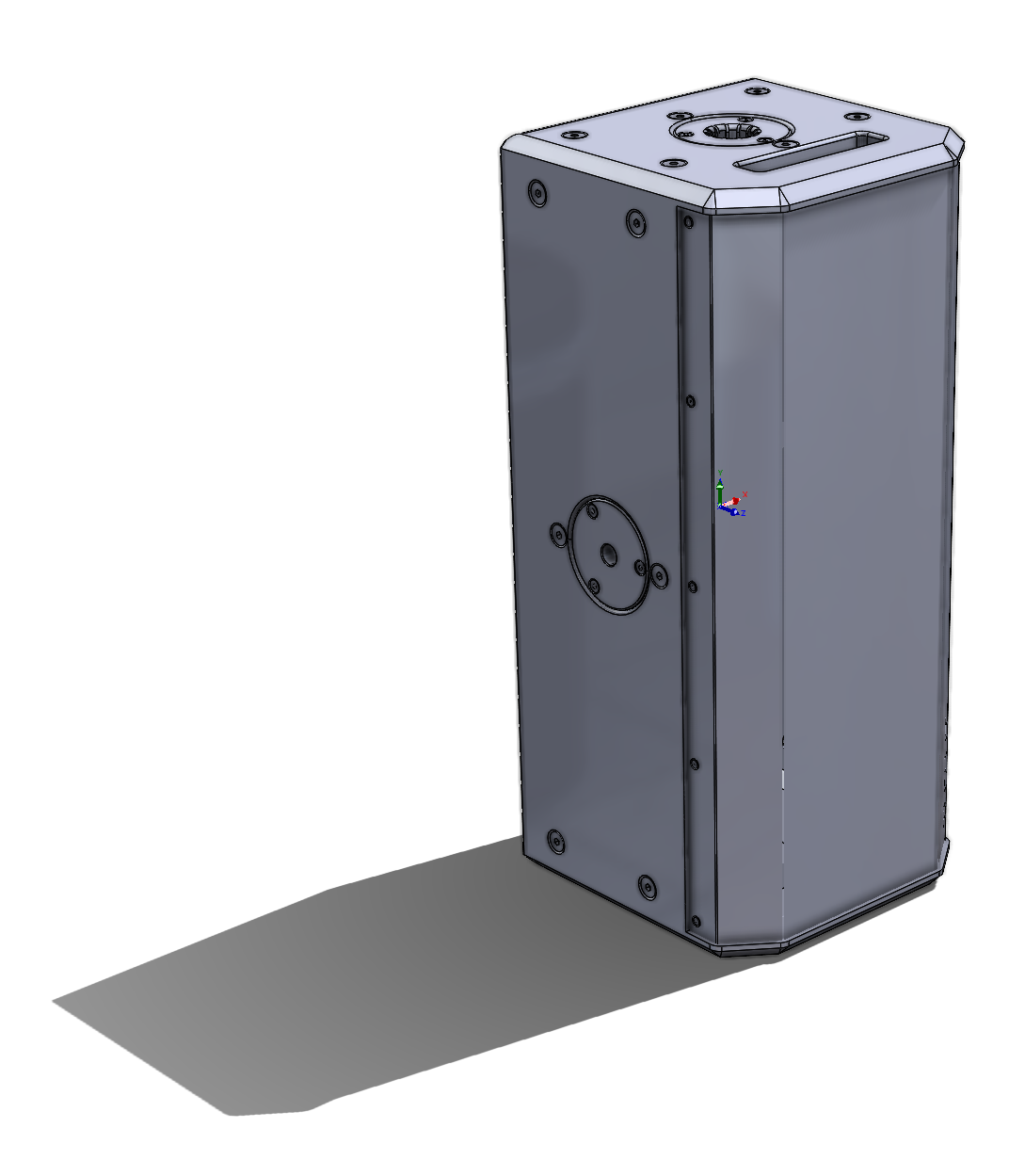

IMAGE SHOWN IS SR-112.2. THE 28.2 LOOKS THE SAME, ONLY LITTLER! (28.2 IMAGE COMING SOON)
The SR-28.2 offers performance, coverage and output similar to the 12” SR-112.2, in a more slender package for applications where form factor is important.
The SR-28.2 features an 80º x 60º elliptical horn with particularly controlled response that insures every seat in the intended coverage area hears the same accurate sound. The sound quality is particularly “hi-fi” in its accuracy and refinement.
Surprisingly compact, the powerful, high-fidelity SR-28.2 won’t impede on aesthetics – it can be installed discretely, and in tighter locations than other sound reinforcement style speakers on the market.
The SR-28.2 was thoughtfully designed from top to bottom including ergonomic handles, multiple fly points, industry-standard mount points, and pole cups.
It is available in black and white, and in passive or active versions depending on the installation need. Upgrades include custom paint matching and weatherizing (of the passive version only).
Optional accessories include the Theory SplitYoke™ Multipurpose Mounting Brackets used to install the SR-28.2 easily on the wall, ceiling, floor (as a monitor), and other surfaces.
Theory’s new SR Series loudspeakers are built-to-order in the U.S. and unite lively dynamics, high maximum output level, and refined acoustic performance. Unlike most sound reinforcement speakers, and in line with the brand’s promise, Theory is raising the performance bar, not only in terms of accuracy of the reproduced sound, but also in sheer output capability.
Capable of astonishing range and output, the compact SR-28.2 will have you rethinking how you design your next portable or installed sound reinforcement project.
IMAGE SHOWN IS SR-112.2. THE 28.2 LOOKS THE SAME, ONLY LITTLER! (28.2 IMAGE COMING SOON)
The SR-28.2 offers performance, coverage and output similar to the 12” SR-112.2, in a more slender package for applications where form factor is important.
The SR-28.2 features an 80º x 60º elliptical horn with particularly controlled response that insures every seat in the intended coverage area hears the same accurate sound. The sound quality is particularly “hi-fi” in its accuracy and refinement.
Surprisingly compact, the powerful, high-fidelity SR-28.2 won’t impede on aesthetics – it can be installed discretely, and in tighter locations than other sound reinforcement style speakers on the market.
The SR-28.2 was thoughtfully designed from top to bottom including ergonomic handles, multiple fly points, industry-standard mount points, and pole cups.
It is available in black and white, and in passive or active versions depending on the installation need. Upgrades include custom paint matching and weatherizing (of the passive version only).
Optional accessories include the Theory SplitYoke™ Multipurpose Mounting Brackets used to install the SR-28.2 easily on the wall, ceiling, floor (as a monitor), and other surfaces.
Theory’s new SR Series loudspeakers are built-to-order in the U.S. and unite lively dynamics, high maximum output level, and refined acoustic performance. Unlike most sound reinforcement speakers, and in line with the brand’s promise, Theory is raising the performance bar, not only in terms of accuracy of the reproduced sound, but also in sheer output capability.
Capable of astonishing range and output, the compact SR-28.2 will have you rethinking how you design your next portable or installed sound reinforcement project.
IMAGE SHOWN IS SR-112.2. THE 28.2 LOOKS THE SAME, ONLY LITTLER! (28.2 IMAGE COMING SOON)
SR-28.2 SPECIFICATIONS
| Description: | High-Output Dual 8" 2-Way Multi-Use Loudspeaker with 80° x 60° elliptical horn |
|---|---|
| Operation: | Bi-amp, Requires 2 Theory Loudspeaker Controller Channels |
| DSP Requirements: | Requires Model-Specific Theory-Certified DSP Loudspeaker Processing |
| Drivers: | 2 x 8" 400 WLow Frequency Drivers |
| 1 x 1.75" Theory Advanced Polymer Compression Driver | |
| Enclosure: | Standard: Premium Multiply Birch Plywood with Poly Urea Paint |
| Weatherized: Marine-Grade Composite with Poly Urea Paint | |
| Terminals: | Passive: Neutrik SpeakOn NL-4, 4-Postion Barrier Strip |
| Self-Powered: Neutrik XLR Input with Loop Output | |
| Outdoor Capability: | Indoor and Outdoor Use (with Optional Weatherized Finish) |
| Mounting Points: | Industry Standard Mount Points, M10 Fly Points (28), Swapable Integral 20mm Pole Cups (2) and Top Hats (2) |
| Optional SplitYoke™ Multipurpose Mounting Brackets | |
| Bandwidth: | 45Hz - 23kHz, -3dB |
| 41Hz, -6dB | |
| 37Hz, -10dB | |
| Crossover: | 8th order acoustic via DSP |
| Coverage: | 80° Horiztonal x 60° Vertical |
| Sensitivity: | 97dB LF; 108dB HF SPL/2.83V/1m |
| Power Handling: | 400W (AES); |
| 800W (Continuous); | |
| 1,600W (Peak) | |
| Minimum recommended Power: | 250W rms |
| Maximum Output: | 123dB SPL / 1m (based on AES power rating) |
| 129dB SPL / 1m (peak) | |
| Nominal Impedance: | 8-ohms LF; 16-ohms HF |
| Colors: | Black or White Standard; Custom Paint or Weatherizing (Optional) |
| Dimensions: | Speaker: 27.9" H x 12" W x 12" D (709mm H x 305mm W x 305mm W) |
| Net Weight: | 42 lbs. (19 kg) |
| Included Accessories: | Black Indoor Grille, 20mm Top Hats (2), Pole Cup w 20mm (2), Handles (3) |
| Optional Accessories: | PRO SplitYoke™ Multipurpose Mounting Brackets |
SR-28.2 MEASUREMENTS
(All measurements made with Klippel Near Field Scanner in free space)
SMOOTH. ACCURATE. EXTENDED….and CONTROLLED.
The CEA2034 or “Spinorama” data encapsulates the performance of a loudspeaker in a typical room. The SR-28.2’s “On-axis” and “Listening Window” responses are ruler-flat, exactly the response that delivers accurate timbre, unmatched detail and coherence to the listener’s ears. The directivity curves reveal how well the 28.2’s horn hold it’s coverage pattern to the top octave.
EVEN THE CHEAP SEATS RECEIVE GREAT SOUND.
The SR-28.2 CEA 2034 predicted in-room response shows the benefits of its smooth response and controlled directivity: uniform, smooth, extended and accurate in-room (reverberant field included) frequency response. Smooth in-room response, with no disruptive peaks or dips such as this, sounds natural, uncolored and detailed...everywhere in the venue. Even in the cheap seats.
POWERFULLY SMOOVE.
The Sound Power response is the measure of *all* of the energy radiated by the loudspeaker and is an indicator of how the speaker will sound in a reverberant space, where the energy radiated in all directions encounters venue boundaries and is reflected back to the audience. The SR-28.2’s linear and declining-with-frequency response shows textbook performance. Your venue will sound good…everywhere.
AUDIENCE ON THE FLOOR AND IN THE BALCONY? NO PROBLEM.
The SR-28.2’s horizontal (left) and vertical (below left) off-axis responses indicate the “coverage” of the audience. The uniformly spaced responses indicate a well-controlled dispersion pattern. This means that the 28.2 can be used in portrait or landscape orientations with predictable results. Need more vertical coverage, but require smooth, accurate sound? Simply orient the 28.2 in landscape orientation and sleep well at night!
WHEN WE SAY 80, WE MEAN EIGHTY. WHEN WE SAY 60, WE MEAN SIXTY.
The directivity contour plot shows the coverage the loudspeaker visually as a rectangular “heat map”. Like the data shown in the off-axis response curves, you can clearly see that the vertical (below right) and horizontal (right) coverage are exactly to our 80 x 60 specification. You can sleep at night knowing that the sound is going where you point it.
CIRCULAR LINEARITY.
The SR-28.2 polar response plots are another way to “see” the dispersion and off-axis behavior. The 28.2’s horn offers precisely-controlled dispersion all the way to the very top audio octave.
LISTEN WITH YOUR EYES.
Here is the data shown in the Directivity Contour Plot shown again on a polar map, making it easier to “see” how the sound is dispersed from the loudspeaker itself. The 0° axis represents the axis perpendicular to the speaker baffle. The SR-28.2 coverage is very wide and uniform, and controlled all the way to the top audio octave.
SR-28.2 GALLERY
** SR-112.2 SHOWN. SR-28.2 LOOKS THE SAME, BUT SLIGHTLY MORE COMPACT. SR-28.2 IMAGE COMING SOON.
