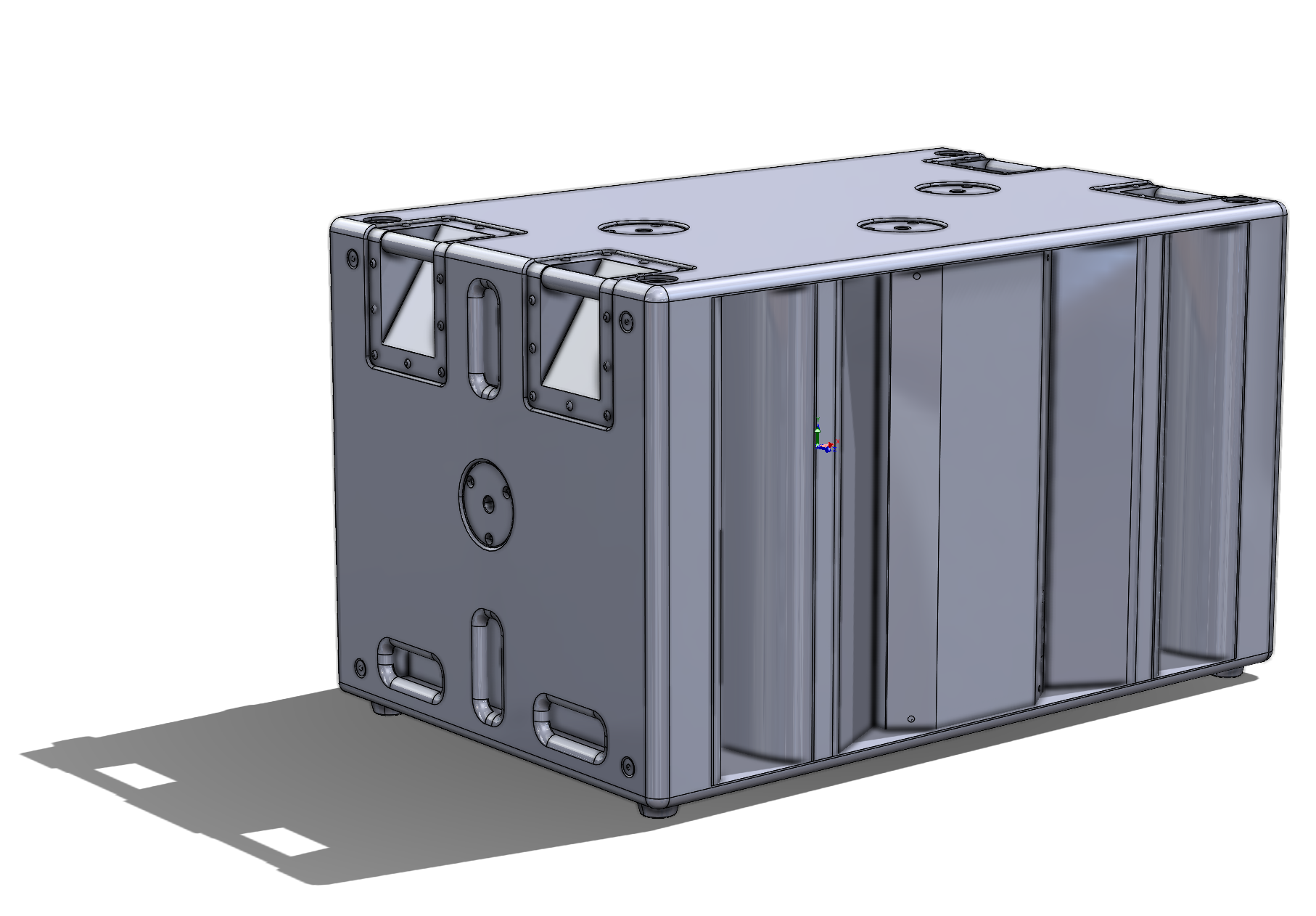

SR-215LF Maximum Output Manifold Bass Reflex Subwoofer
You have never experienced bass quite like the SR Series manifold subwoofers.
Built-to-order in the U.S., SR Series subwoofers provide powerful bass output that is visceral and exciting, but also shockingly tight and tuneful. Folks familiar with Theory’s smaller subwoofer transparent and textural sound, will immediately recognize the quality of the low frequency reproduction.
The SR-215LF, the smallest of Theory’s SR manifold subwoofers, houses two proprietary 15” 3,600W woofers with 4.5” voice coils in a relatively compact and easy to transport package.
Like all SR manifold subwoofers, the SR-215LF features 2 huge low turbulence ports, five 20mm “top hats” on three surfaces for full range speaker pole mounting, driver access for field service, horizontal and vertical handles, bottom and back panel anti-skid rubber feet that mount to M10 fly points (with pockets on the top surface to insure safe stacking).
Passive versions can be upgraded to powered versions with a Theory SR Series amplifier kit (sold separately).
Optional accessories include permanent and quick-release caster kits, and a thoughtfully designed universal dolly board that works with all SR manifold subwoofer models. The dolly board offers amp / input panel access when installed, horizontal and vertical handles, quick release latches, and a stackable design for easy storage.
SR Series manifold subwoofers are available in black and white, and in passive or active versions depending on the installation need. Upgrades include custom paint matching and weatherizing (of the passive version only).
Capable of astonishing output combined with high-fidelity sound, the SR-215LF will have you rethinking how you design your next portable or installed sound reinforcement project.
You have never experienced bass quite like the SR Series manifold subwoofers.
Built-to-order in the U.S., SR Series subwoofers provide powerful bass output that is visceral and exciting, but also shockingly tight and tuneful. Folks familiar with Theory’s smaller subwoofer transparent and textural sound, will immediately recognize the quality of the low frequency reproduction.
The SR-215LF, the smallest of Theory’s SR manifold subwoofers, houses two proprietary 15” 3,600W woofers with 4.5” voice coils in a relatively compact and easy to transport package.
Like all SR manifold subwoofers, the SR-215LF features 2 huge low turbulence ports, five 20mm “top hats” on three surfaces for full range speaker pole mounting, driver access for field service, horizontal and vertical handles, bottom and back panel anti-skid rubber feet that mount to M10 fly points (with pockets on the top surface to insure safe stacking).
Passive versions can be upgraded to powered versions with a Theory SR Series amplifier kit (sold separately).
Optional accessories include permanent and quick-release caster kits, and a thoughtfully designed universal dolly board that works with all SR manifold subwoofer models. The dolly board offers amp / input panel access when installed, horizontal and vertical handles, quick release latches, and a stackable design for easy storage.
SR Series manifold subwoofers are available in black and white, and in passive or active versions depending on the installation need. Upgrades include custom paint matching and weatherizing (of the passive version only).
Capable of astonishing output combined with high-fidelity sound, the SR-215LF will have you rethinking how you design your next portable or installed sound reinforcement project.
You have never experienced bass quite like the SR Series manifold subwoofers.
Built-to-order in the U.S., SR Series subwoofers provide powerful bass output that is visceral and exciting, but also shockingly tight and tuneful. Folks familiar with Theory’s smaller subwoofer transparent and textural sound, will immediately recognize the quality of the low frequency reproduction.
The SR-215LF, the smallest of Theory’s SR manifold subwoofers, houses two proprietary 15” 3,600W woofers with 4.5” voice coils in a relatively compact and easy to transport package.
Like all SR manifold subwoofers, the SR-215LF features 2 huge low turbulence ports, five 20mm “top hats” on three surfaces for full range speaker pole mounting, driver access for field service, horizontal and vertical handles, bottom and back panel anti-skid rubber feet that mount to M10 fly points (with pockets on the top surface to insure safe stacking).
Passive versions can be upgraded to powered versions with a Theory SR Series amplifier kit (sold separately).
Optional accessories include permanent and quick-release caster kits, and a thoughtfully designed universal dolly board that works with all SR manifold subwoofer models. The dolly board offers amp / input panel access when installed, horizontal and vertical handles, quick release latches, and a stackable design for easy storage.
SR Series manifold subwoofers are available in black and white, and in passive or active versions depending on the installation need. Upgrades include custom paint matching and weatherizing (of the passive version only).
Capable of astonishing output combined with high-fidelity sound, the SR-215LF will have you rethinking how you design your next portable or installed sound reinforcement project.
SR-215LF SPECIFICATIONS
Description: | High-Output, Bass-Reflex Subwoofer with Dual 15" Woofers |
Operation: | Passive or Self-Powered, Passive Operation Requires at least 2 Theory Loudspeaker Controller Amp Channels |
Each Driver 8-ohms, 4-ohms in parallel | |
DSP Requirements: | Requires Model-Specific Theory-Certified DSP Loudspeaker Processing |
Drivers: | 2 x 15" 3,600W Low Frequency Drivers |
Enclosure: | Premium Multiply Birch Plywood with Poly Urea Paint Coating |
Terminals: | Passive: Neutrik SpeakOn NL-4, 4-Postion Barrier Strip |
Self-Powered: Neutrik XLR Input with Loop Output | |
Outdoor Capability: | Indoor and Outdoor Use (with Optional Weatherized Finish) |
Mounting Points: | M10 Fly points (24) |
Bandwidth: | 30Hz-125Hz, -3dB |
28.5Hz, -6db; | |
25Hz, -10dB | |
Crossover: | Theory Standard LR4 @ 125Hz Low Pass |
Sensitivity: | 102dB SPL/2.83V/1m (Parallel) |
Power Handling: | 1,800W (AES) Per Driver |
3,600W (AES) Parallel | |
3,600W (Continuous) Per Driver | |
7,200W (Peak) Per Driver | |
Minimum recommended Power: | 1,500Wrms Per Driver |
Maximum Output: | 134dB SPL / 1m (based on AES power rating) |
140dB SPL / 1m (peak) | |
Nominal Impedance: | 8-ohms Per Driver |
Colors: | Black and White Standard; Custom Paint or Weatherizing (Optional) |
Dimensions: | Speaker : 40" W x 23.4" H x 25" D (1,016mm W x 594mm H x 635mm D) |
Speaker w Feet: 40" W x 24.2" h x 25.75" D W (1,016mm W x 615mm H x 654mm D) | |
Net Weight: | 251 lbs. (114 kg) |
Included Accessories: | Grille. 20mm Top Hats (5), Handles (12), Anti-Skid Rubber Feet (8) |
Optional Accessories: | Caster Kit, Quick-Release Caster Kit, and Dolly Board for Portability |
