SR-212.2 SPECIFICATIONS
Description: | High-Output 12" 2-Way Multi-Use Loudspeaker with 80° x 60° Elliptical Horn |
Operation: | Bi-amp, Requires 2 Theory Loudspeaker Controller Channels |
DSP Requirements: | Requires Model-Specific Theory-Certified DSP Loudspeaker Processing |
Drivers: | 1 x Theory 12" 1400W Low Frequency Driver |
1 x 1.75" Theory Advanced Polymer Compression Driver | |
Enclosure: | Standard: Premium Multiply Birch Plywood with Poly Urea Paint |
Weatherized: Marine-Grade Composite with Poly Urea Paint | |
Terminals: | Passive: Neutrik SpeakOn NL-4, 4-Postion Barrier Strip |
Self-Powered: Neutrik XLR Input with Loop Output | |
Outdoor Capability: | Indoor and Outdoor Use (with Optional Weatherized Finish) |
Mounting Points: | Industry Standard Mount Points, M10 Fly Points (18), Swapable Integral 20mm Pole Cups (2) and Top Hats (2) |
Optional SplitYoke™ Multipurpose Mounting Brackets | |
Bandwidth: | 36Hz - 23kHz, -3dB |
34Hz, -6dB | |
31Hz, -10dB | |
Crossover: | 8th order acoustic via DSP |
Coverage: | 80° Horiztonal x 60° Vertical |
Sensitivity: | 95dB LF; 108dB HF SPL/2.83V/1m |
Power Handling (LF): | 700W (AES); |
1,400W (Continuous); | |
2,800W (Peak) | |
Minimum recommended Power: | 500W rms |
Maximum Output: | 124dB SPL / 1m (based on AES power rating) |
130dB SPL / 1m (peak) | |
Nominal Impedance: | 8-ohms LF; 16-ohms HF |
Colors: | Black or White Standard; Custom Paint or Weatherizing (Optional) |
Dimensions: | 26.4" H x 14" W x 15" D (671mm H x 356mm W x 381mm D) |
Net Weight: | 70 lbs. (6.8 kg) |
Included Accessories: | Black Indoor Grille, 20mm Top Hats (2), Pole Cup w 20mm (2), Handles (3) |
Optional Accessories: | PRO SplitYoke™ Multipurpose Mounting Brackets |
SR-212.2 MEASUREMENTS
(All measurements made with Klippel Near Field Scanner in free space)

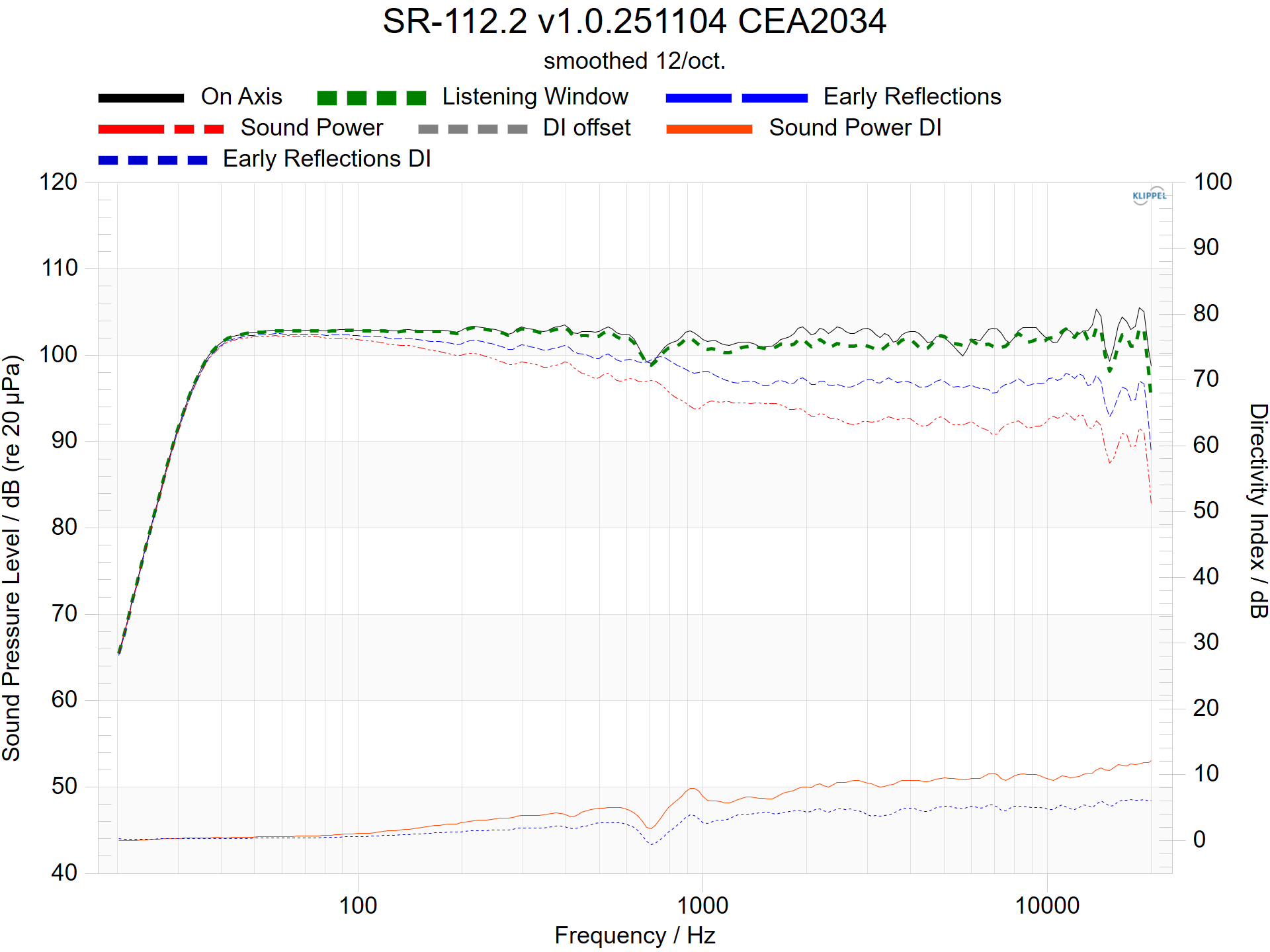

SMOOTH. ACCURATE. EXTENDED.
The CEA2034 or “Spinorama” data encapsulates the performance of a loudspeaker in a typical room. The SR-112.2’s “Listening Window” response is ruler-flat, exactly the response that delivers accurate timbre, unmatched detail and coherence to the listener’s ears.
(CON)TOUR de FORCE.
The directivity contour plot shows the coverage the loudspeaker visually as a rectangular “heat map”. The SR-112.2 holds its 80° horizontal pattern uniformly across a wide bandwidth, all the way into the top audio octave.

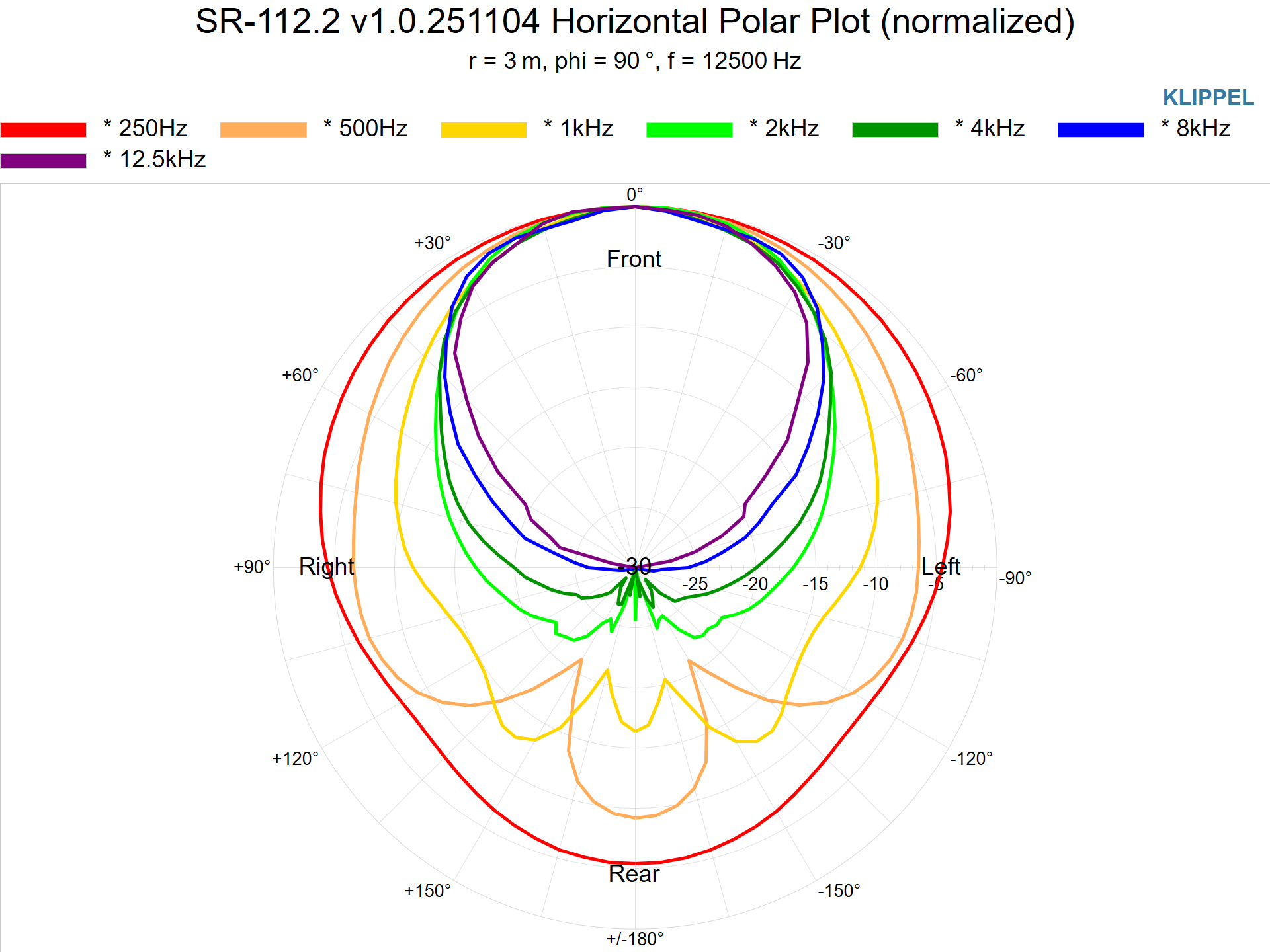

DO YOU SEE A PATTERN DEVELOPING?
Here is the data shown in the Directivity Contour Plot shown again on a polar map, making it easier to “see” how the sound is dispersed from the loudspeaker itself. The 0° axis represents the axis perpendicular to the speaker baffle. The SR-112.2 coverage is perfectly controlled, all the way to the top audio octave.
WHEN WE SAY “60 DEGREES”, WE MEAN SIXTY DEGREES.
The directivity contour plot shows the coverage the loudspeaker visually as a rectangular “heat map”. The SR-112.2 holds its 60° vertical pattern uniformly across a wide bandwidth, all the way into the top audio octave.

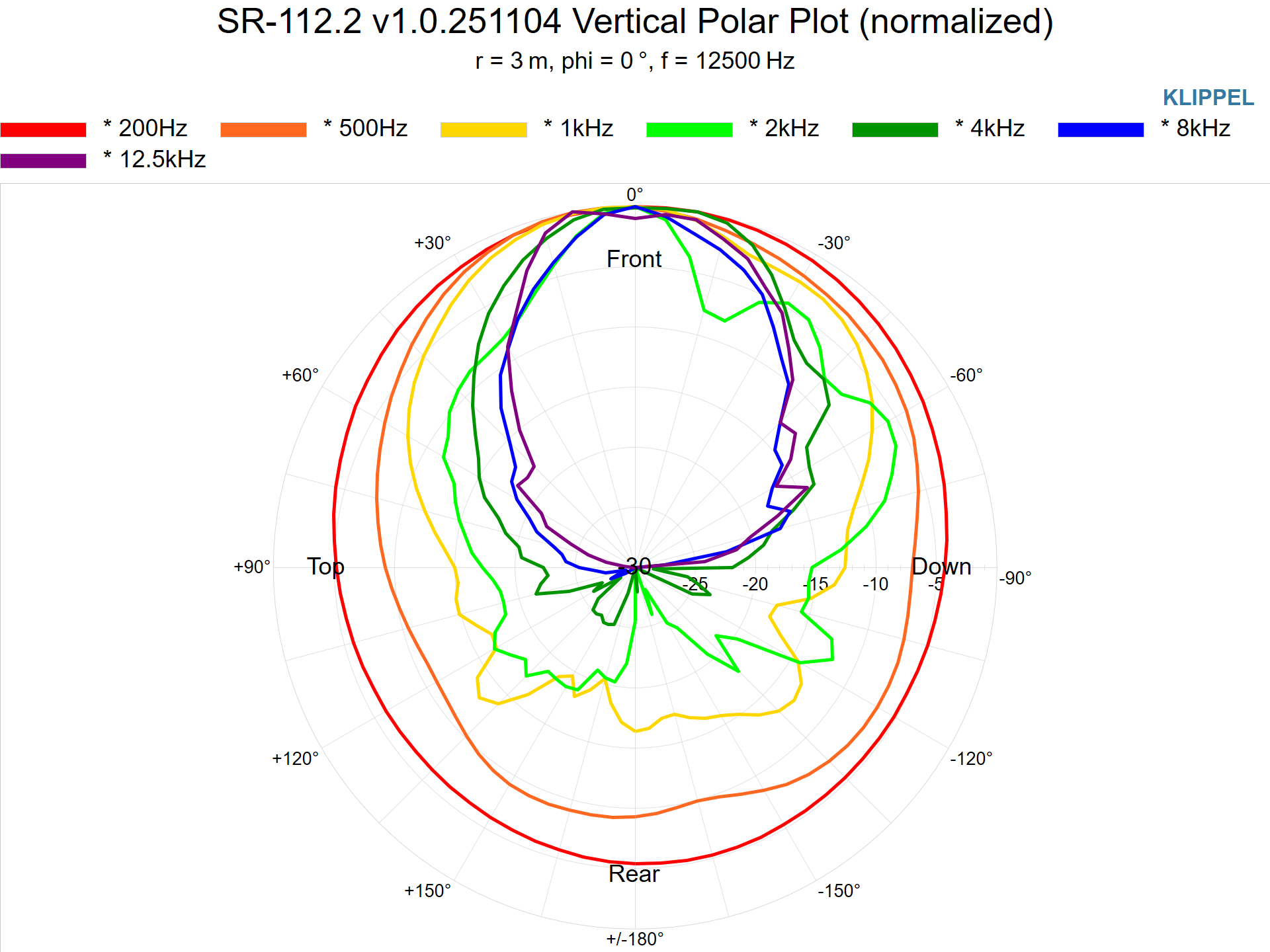

SIXTY DEGREES OF FREEDOM.
Here is the data shown in the Directivity Contour Plot shown again on a polar map, making it easier to “see” how the sound is dispersed from the loudspeaker itself. The 0° axis represents the axis perpendicular to the speaker baffle. Like the SR-112.2’S horizontal coverage, its vertical coverage is perfectly controlled, all the way to the top audio octave.
