sb65 SPECIFICATIONS
Description: | High Output Three-Channel Passive Soundbar for 65" TVs |
Operation: | Passive, Requires 3 Theory Loudspeaker Controller Amp Channels |
3 separate Sealed Enclosures | |
DSP Requirements: | Requires Model-Specific Theory-Certified DSP Loudspeaker Processing |
Drivers: | 6 x 5" Theory Carbon Fiber Low Frequency Drivers |
3 x 1.4" Theory Advanced Polymer High Frequency Compression Drivers | |
Enclosure: | Powder Coated and Anodized Extruded and Machined Aluminum, Fabric Grille |
Terminals: | Twin Spring-Loaded Push Terminals |
Outdoor Capability: | Indoor Use Only |
Mounting Points: | Two Theory VersaSlotTM T-Slots Running Full Height with 4 x M5 Captive Nuts |
Optional Table Top Stand | |
Bandwidth: | 75Hz -23kHz, -6dB; |
65Hz - 25kHz, -10dB | |
Coverage: | 125 Degrees Conical |
160 Degrees Conical (-12dB @ 10kHz) | |
Sensitivity: | 94dB (LF); 108dB (HF) SPL/2.83V/1m |
Power Handling (per chan.): | 200W (AES); |
400W (Continuous); | |
800W (Peak) | |
Minimum Recommended Power: | 50W rms |
Maximum Output: | 117dB SPL / 1m per Channel Driven |
>124dB Three Channels Driven | |
Nominal Impedance: | 4-ohms |
Colors: | Black |
Dimensions: | 57.0" W x 3.8" D x 9.5" H (1448mm W x 97mm D x 241mm H) |
Total Installed Depth (Z-clip Mount): | 3.93" D (100mm) Including Z-Clip Mounting Brackets |
Net Weight: | 62.5 lbs. (28.4kg) |
Included Accessories: | Theory Z-Clip Mounting Brackets (male and female) for Flat Surface Mounting |
Optional Accessories: | sb Table Top Stand |
sb65 ACCESSORIES
STAND UP AND BE NOTICED.
The sb-STAND stand accessory for Theory sb model soundbars and surface mount speakers allows the speakers to stand up on flat surfaces such as TV consoles, tabletops and bookshelves
sb65 DOWNLOADS

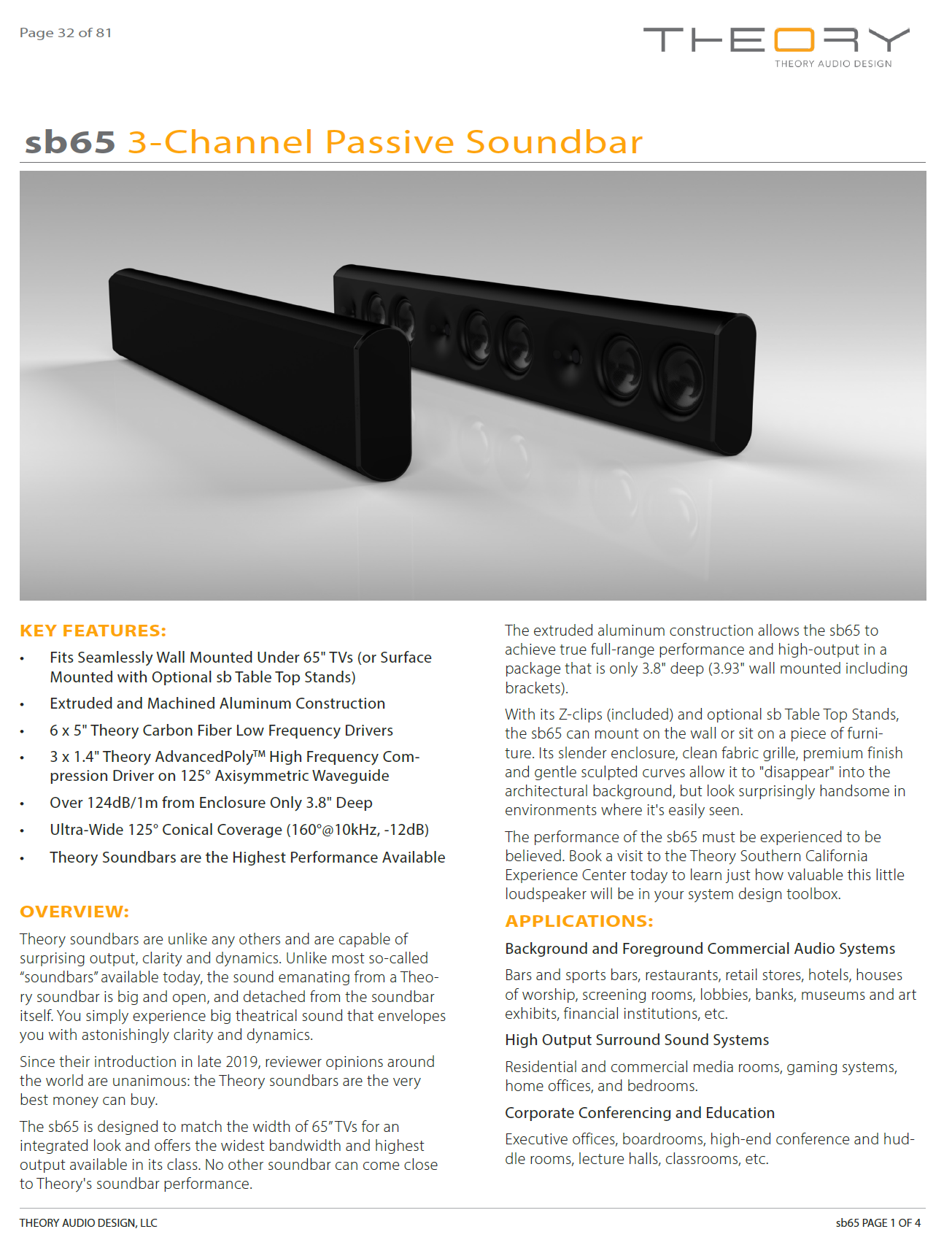

sb65 Data Sheet
sb65 3-View Product Drawing
sb Models Quick Start Installation Guide
sb65 DLC SPEAKER PRESETS
sb65 GALLERY

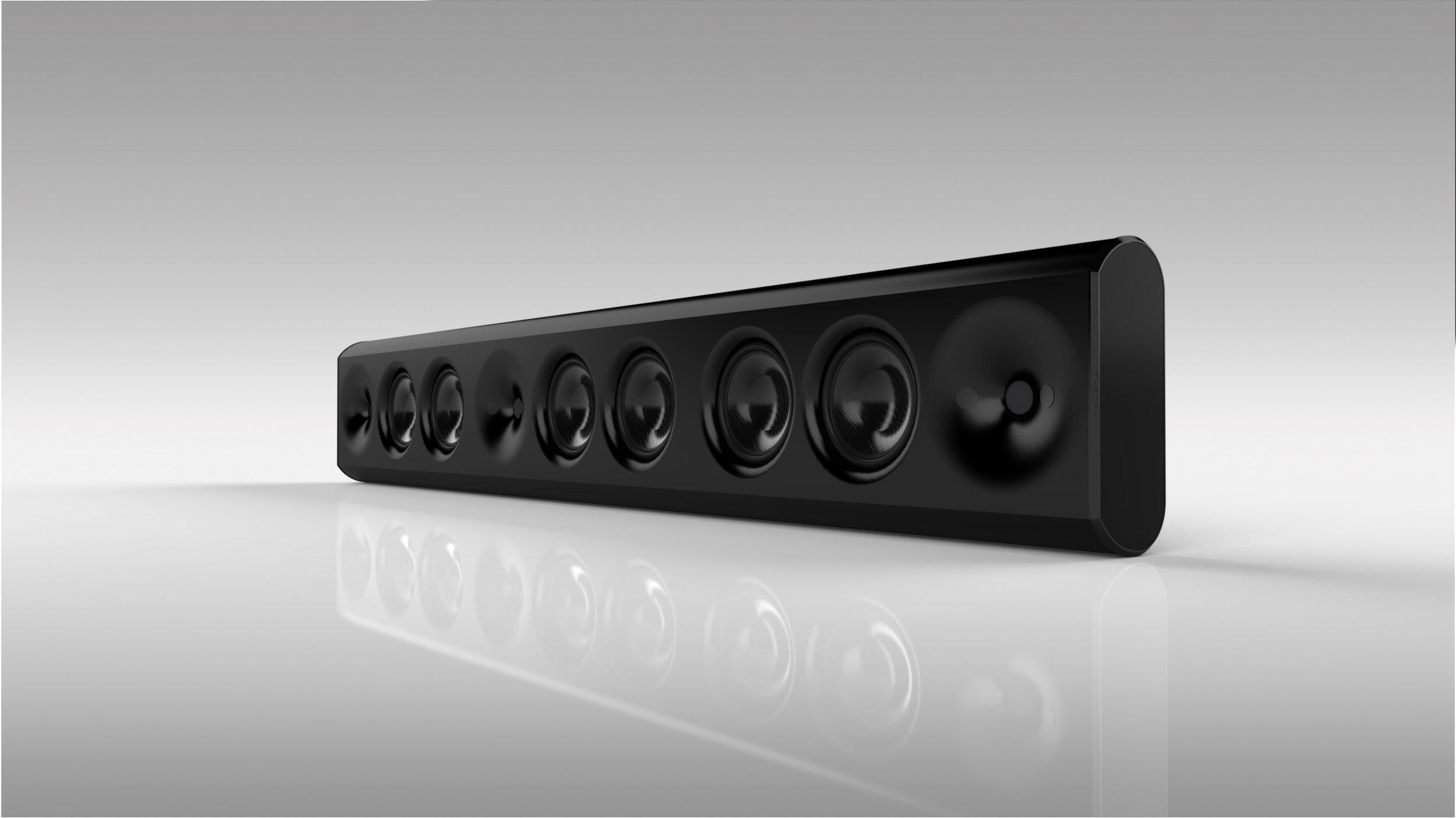

sb65 High Output Soundbar
