sb210aw SPECIFICATIONS
| Description: | Very High-Output Weather Resistant Surface Mount Loudspeaker |
| Operation: | Passive, Requires 1 Theory Loudspeaker Controller Amp Channel |
| 4-ohm or 70V/100V Operation, Selectable | |
| DSP Requirements: | Requires Model-Specific Theory-Certified DSP Loudspeaker Processing |
| Drivers: | 2 x 10" Theory Carbon Fiber Low Frequency Drivers |
| 1 x 6.5" THEORY Coaxial Driver: | |
| 6.5” Carbon Fiber Low Frequency Driver | |
| 1.4" THEORY AdvancedPoly™ Compression Driver | |
| Enclosure: | Powder Coated Extruded and Machined Aluminum, Perforated Aluminum Grille |
| Terminals: | Euroblock Connector with Parallel Output |
| Outdoor Capability: | Indoor and Outdoor Use |
| Mounting Points: | Two Theory VersaSlotTM T-Slots Running Full Height with 4 x M6 Captive Nuts |
| Included Z-Clips | |
| Optional Yoke Bracket | |
| Bandwidth: | 60Hz - 23kHz, -3dB |
| 53Hz -23kHz, -6dB | |
| 45Hz-24kHz, -10dB (Corrolates to subjective perception) | |
| Coverage: | 125 Degrees Conical |
| 140 Degrees Conical (-12dB @ 12kHz) | |
| Sensitivity: | 98dB (LF); 108dB (HF) SPL/2.83V/1m |
| Power Handling: | 400W (AES); |
| 800W (Continuous); | |
| 1600W (Peak) | |
| Minimum Recommended Power: | 125W rms |
| Maximum Output: | 124dB / 1m (based on AES power rating) |
| 130dB SPL / 1m (peak) | |
| Nominal Impedance: | 4-ohms; Hi-Z (70V/100V) Selectable |
| Transformer Taps: | 150W, 75W, 37.5W, (18W, 70V) |
| Colors: | Black, White |

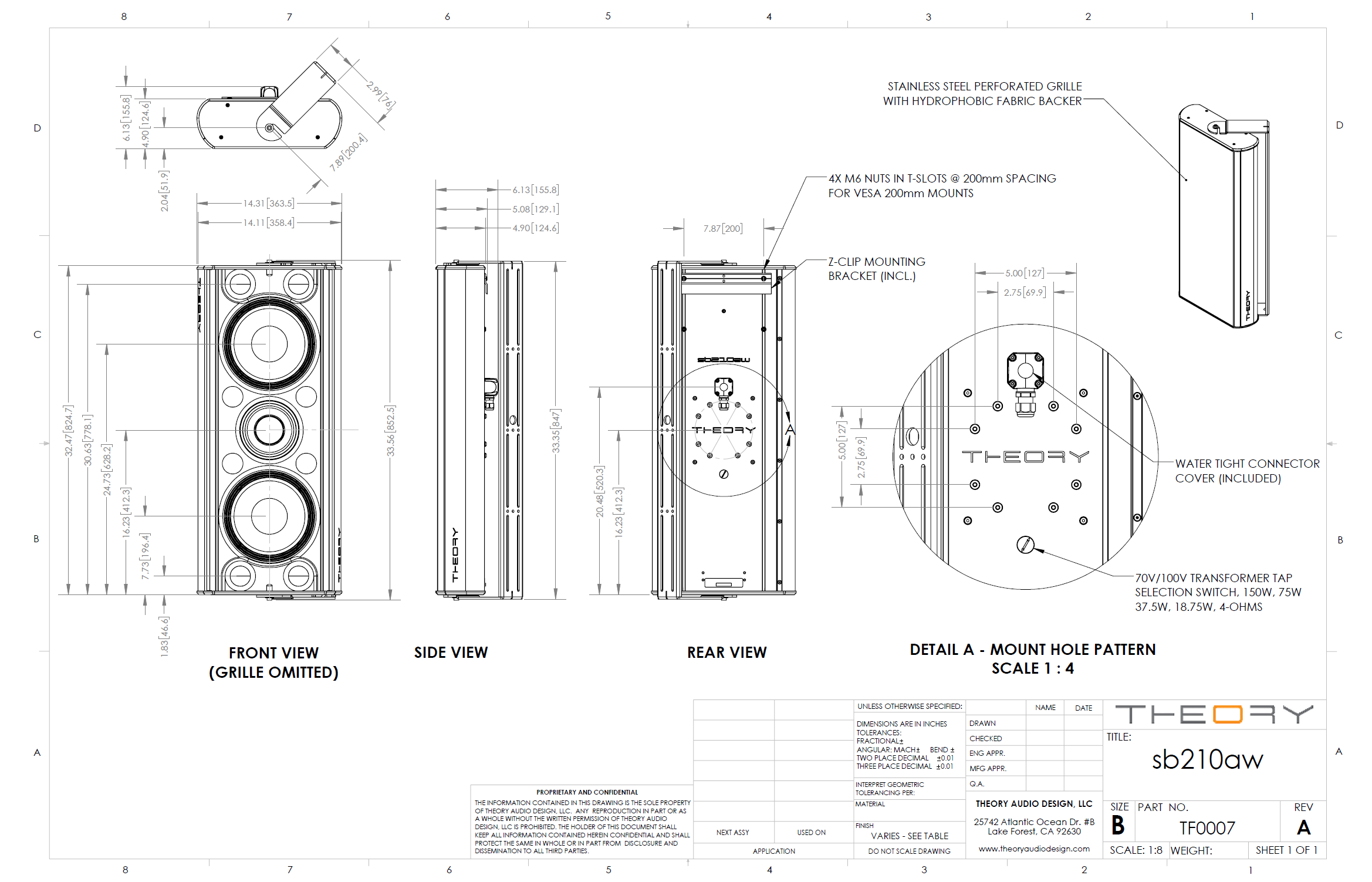

| Dimensions: | 32.5" H x 14.3" W x 4.9" D (825mm H x 364mm W x 125mm D) |
| Total Installed Depth (Z-clip Mount): | 5.1" D (130mm) Including Z-Clip Mounting Brackets |
| Net Weight: | 49.5 lbs. (22.5 kg) |
| Included Accessories: | Theory Z-Clip Mounting Brackets (male and female) for Flat Surface Mounting |
| sb210aw Waterproof Terminal Cover | |
| Optional Accessories: | sb210aw Yoke Bracket |
| Mount Hole Patterns: 2.75” x 5.0” HORIZONTAL AND VERTICAL | |
| Compatible 3rd Party Mounts: | Adaptive Technologies Multimount MM-022-BT Wall Multi-Mount |
| Adaptive Technologies Multimount MM-024 Wall Pan and Tilt Mount | |
| Adaptive Technologies Multimount WM-0-15-60 Wall Extendable Pan and Tilt Mount | |
| Adaptive Technologies Multimount MM-018 Ceiling Pan and Tilt Mount | |
| Adaptive Technologies Multimount MM-3RDX-18 Ceiling Pan and Tilt Mount |
sb210aw MEASUREMENTS
(All measurements made with Klippel Near Field Scanner in free space)
SMOOTH. ACCURATE. EXTENDED.

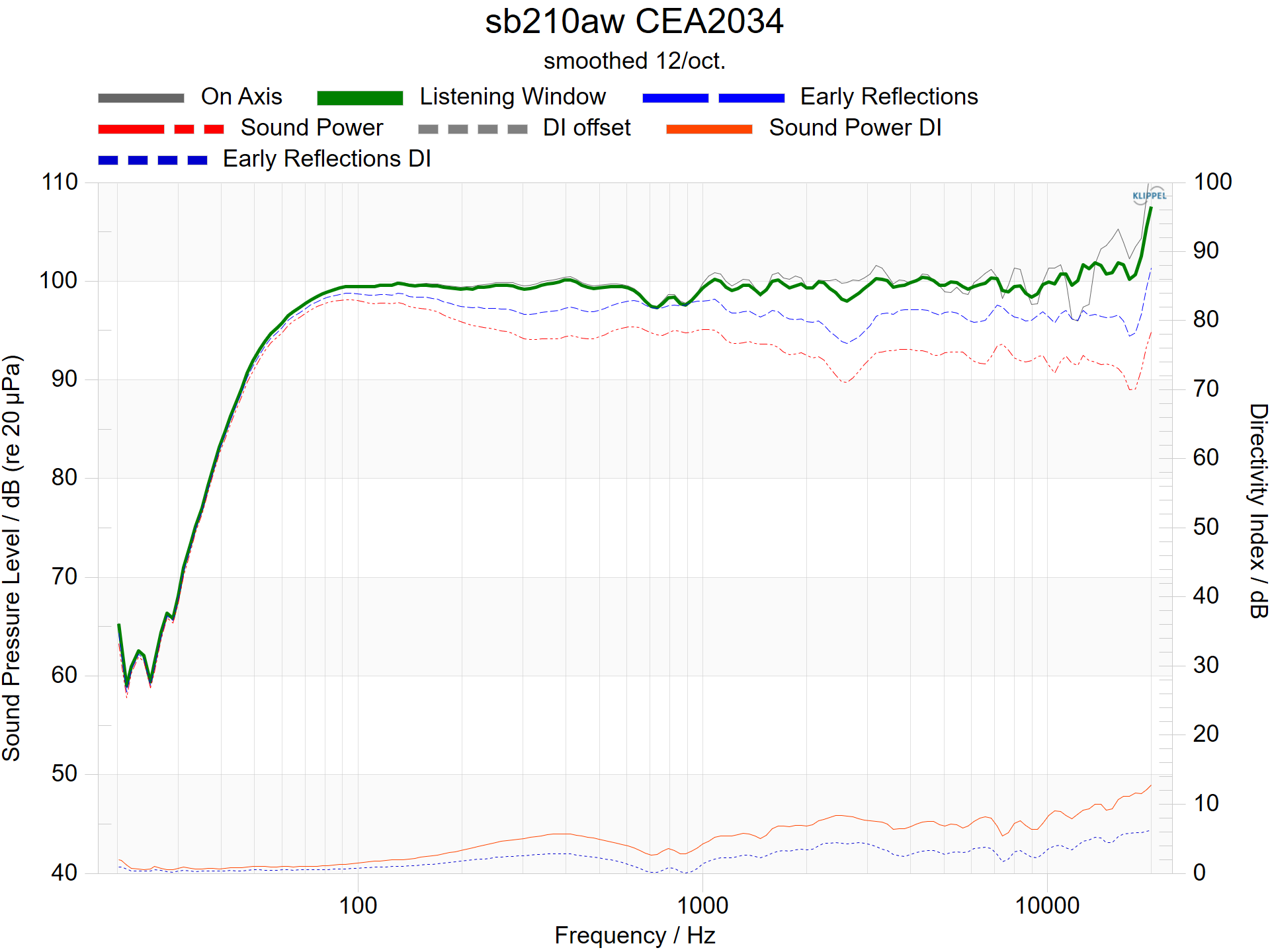

The CEA2034 or “Spinorama” data encapsulates the performance of a loudspeaker in a typical room. The sb210aw “Listening Window” response is ruler-flat, exactly the response that delivers accurate timbre, unmatched detail and coherence to the listener’s ears.
ACCURATE ALL THE WAY TO NINETY.

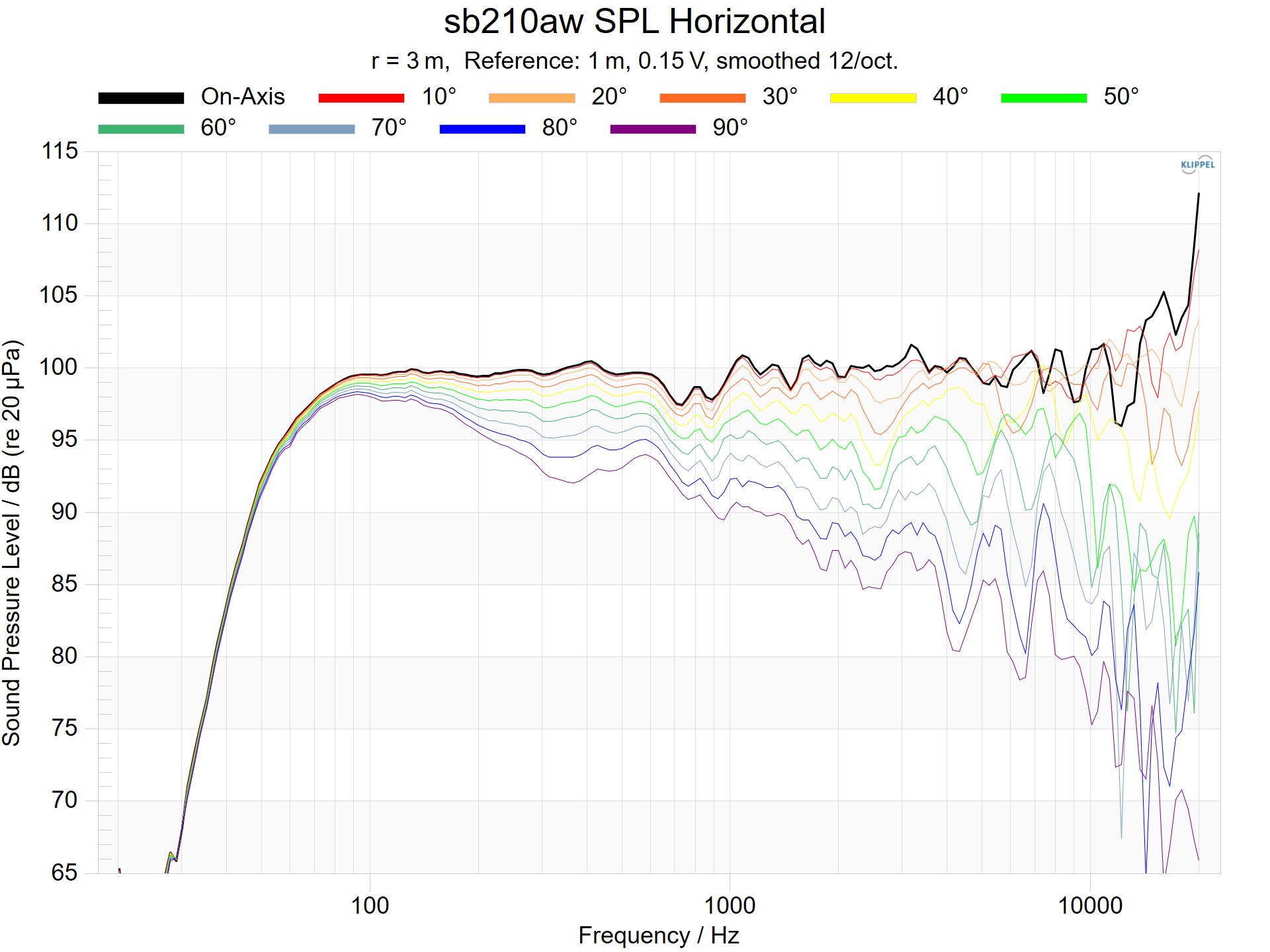

The sb210aw horizontal off-axis response is predictable and smooth all the way to 90 degrees.
ROOM WITH A VIEW.

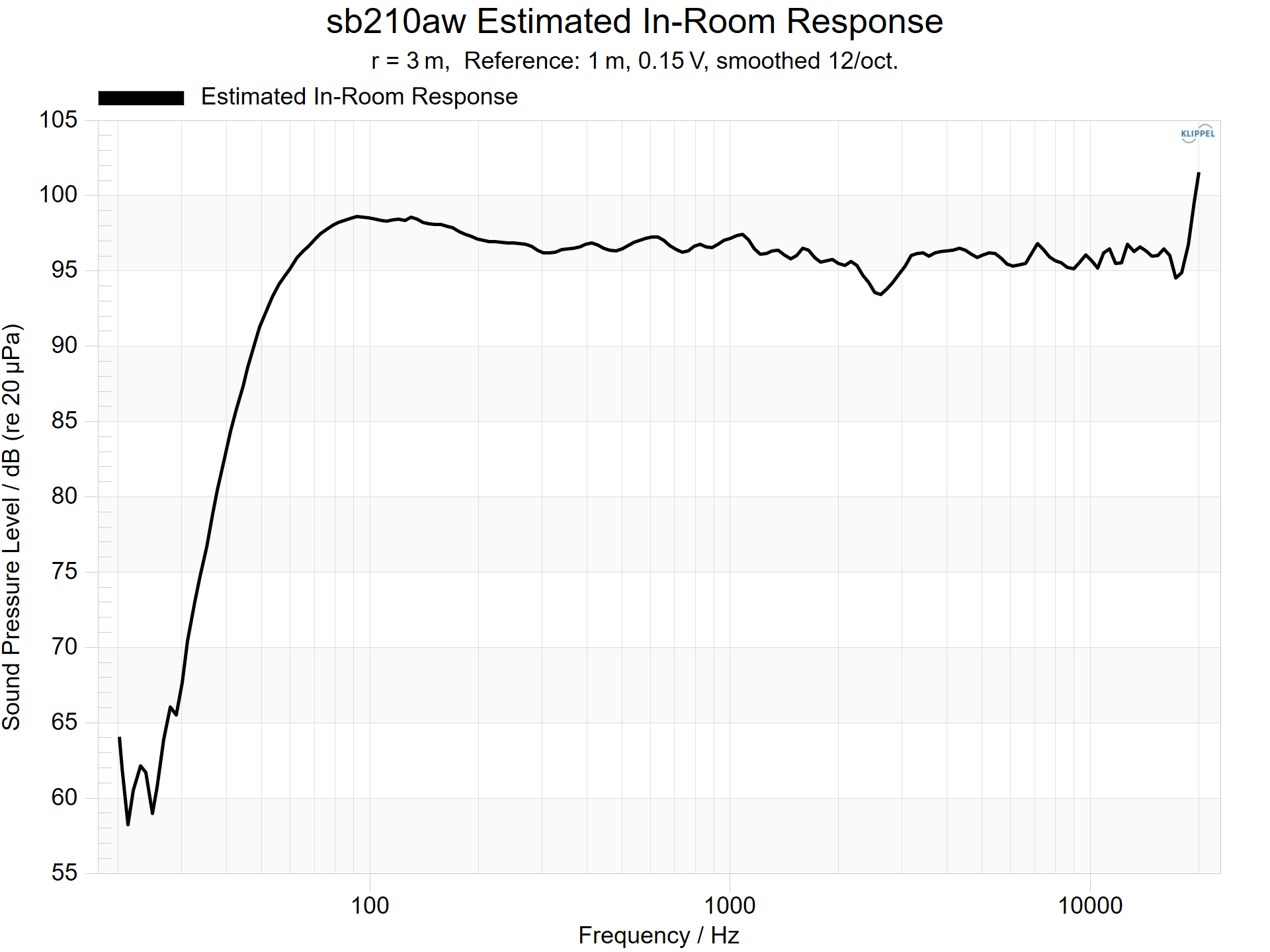

The sb210aw CEA 20234 predicted in-room response shows the benefits of its conical coverage: uniform, smooth, extended and accurate in-room (reverberant field included) frequency response. Smooth in-room response such as this sounds natural, uncolored and detailed.

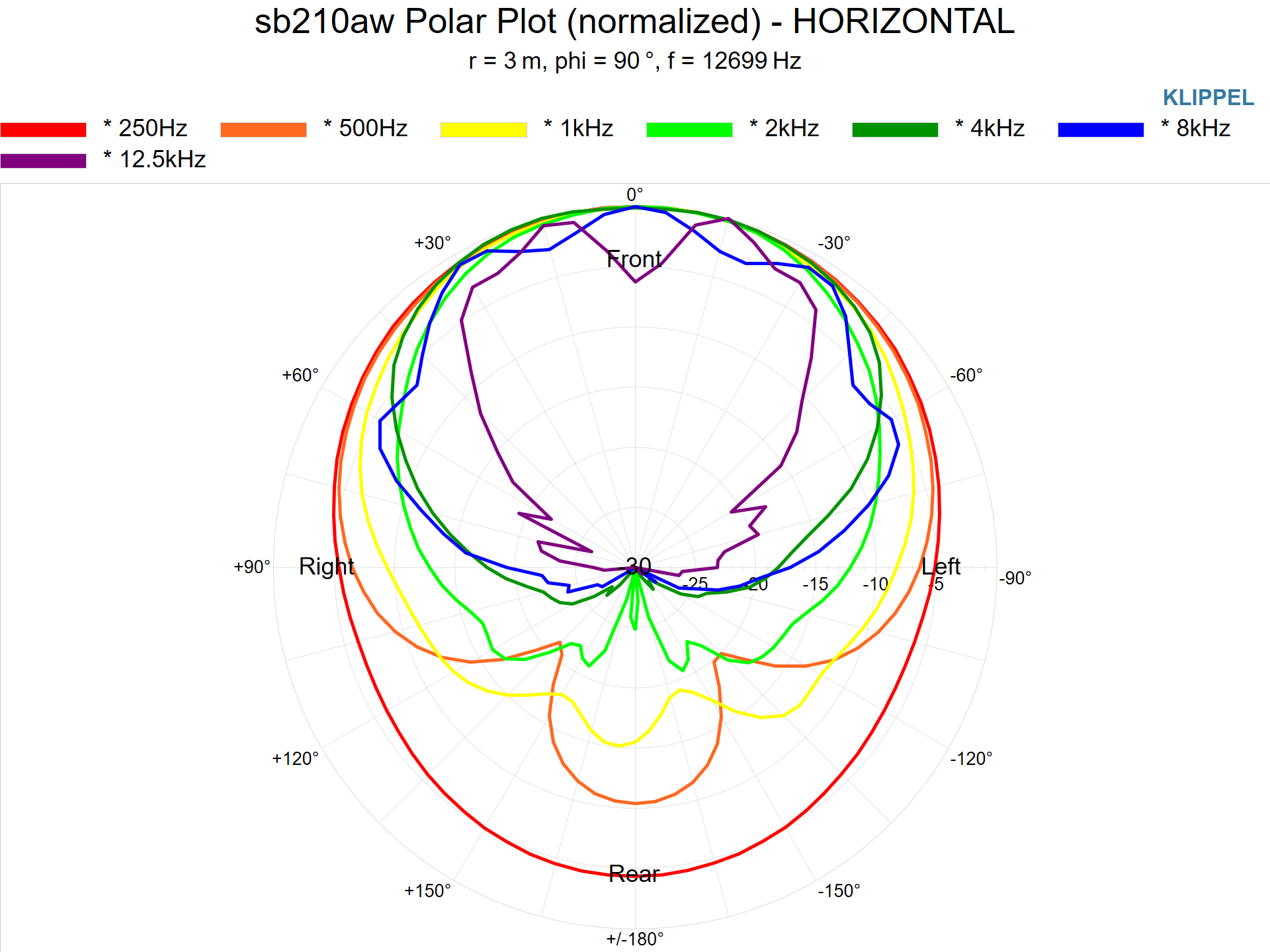

AS TALL AS IT IS WIDE.

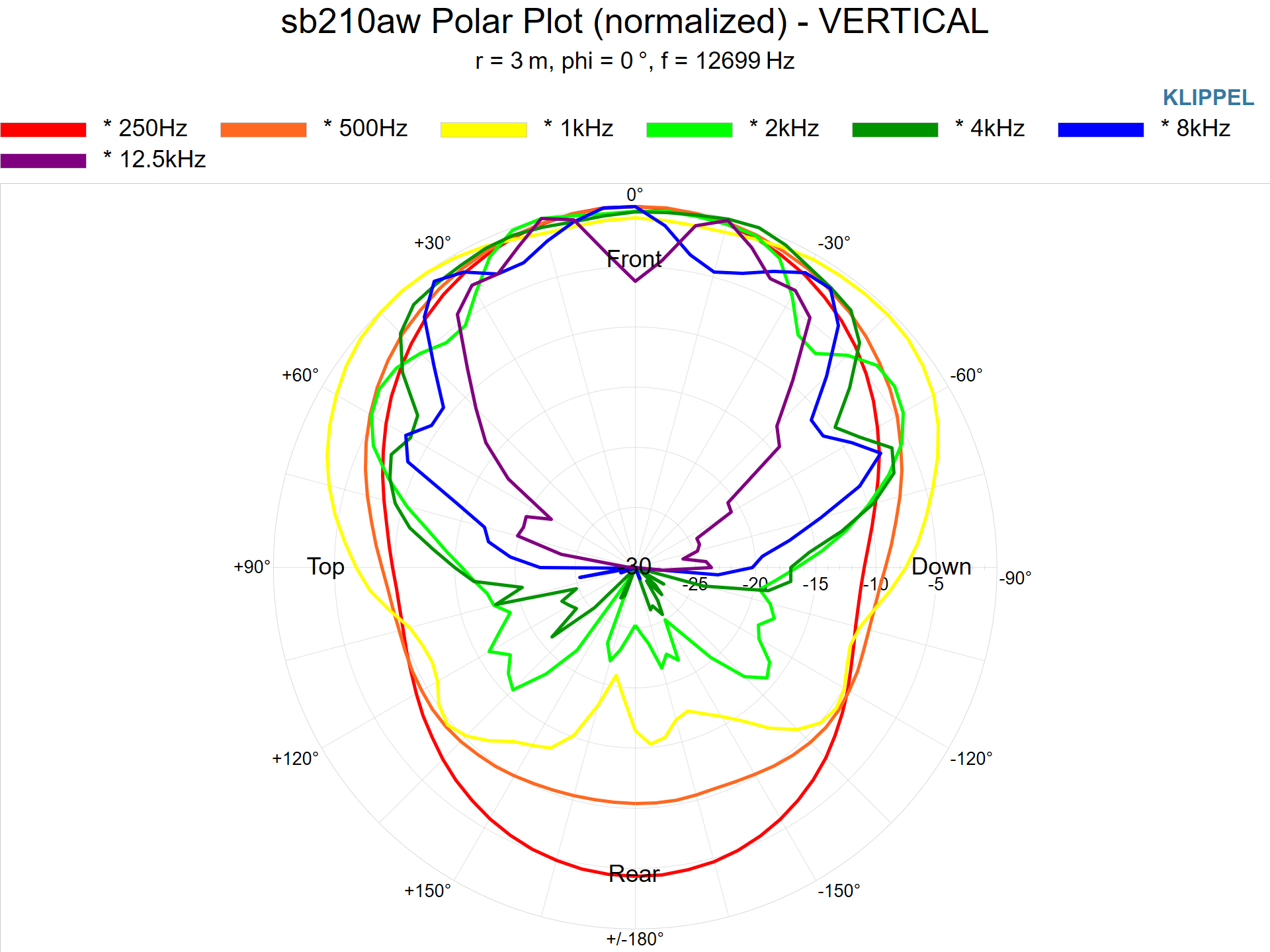

Notice that the sb210aw’s horizontal (left) and vertical (below left) polar responses indicate the same “coverage” of the audience. This is a result of its clever conical dispersion pattern. This means that the sb210aw can be used in portrait or landscape orientations with the same optimum results. Perfect for pairing with today’s increasingly popular “video wall” displays.

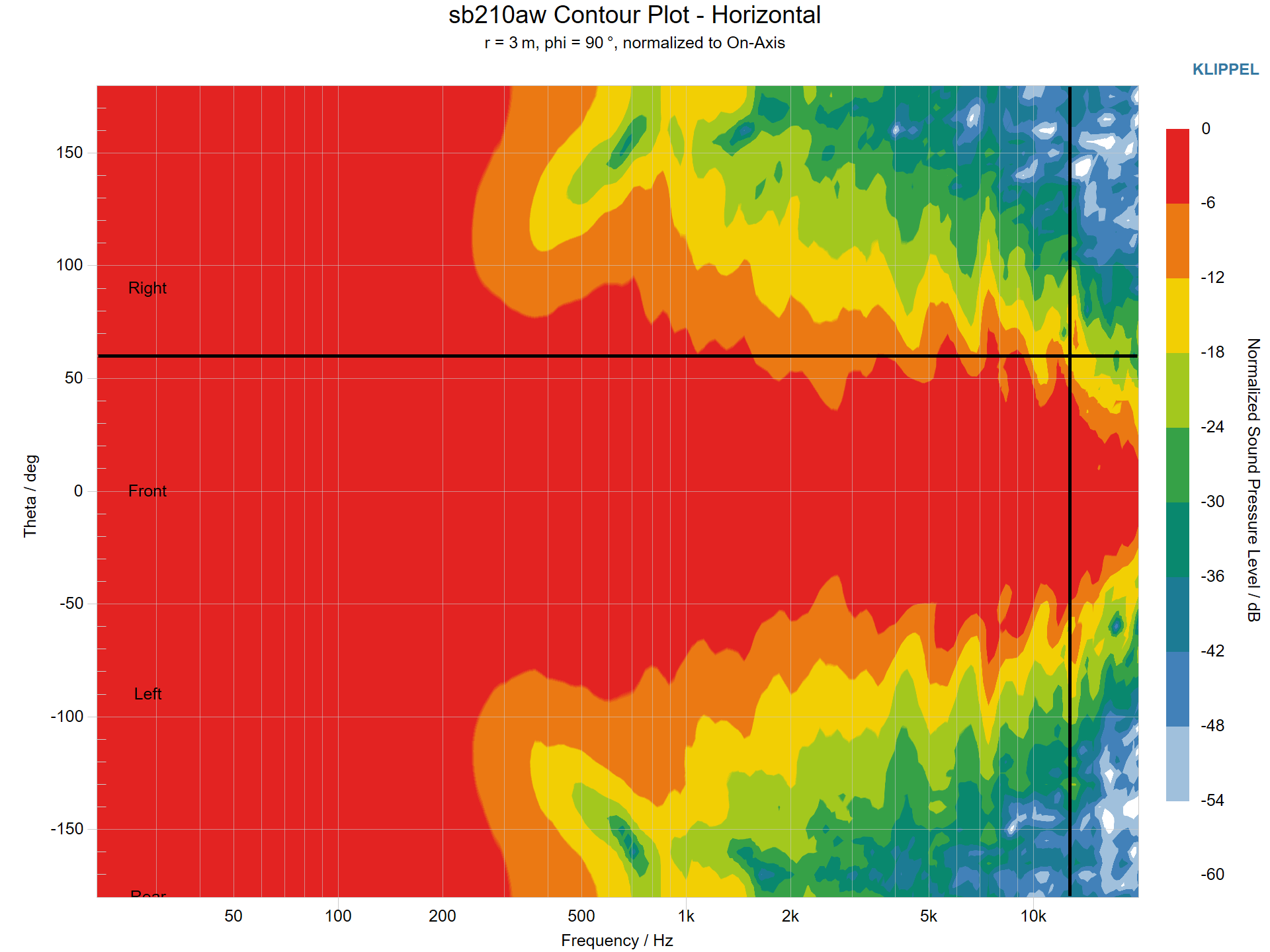

EVEN THE CHEAP SEATS HEAR CLEAN, DETAILED SOUND.

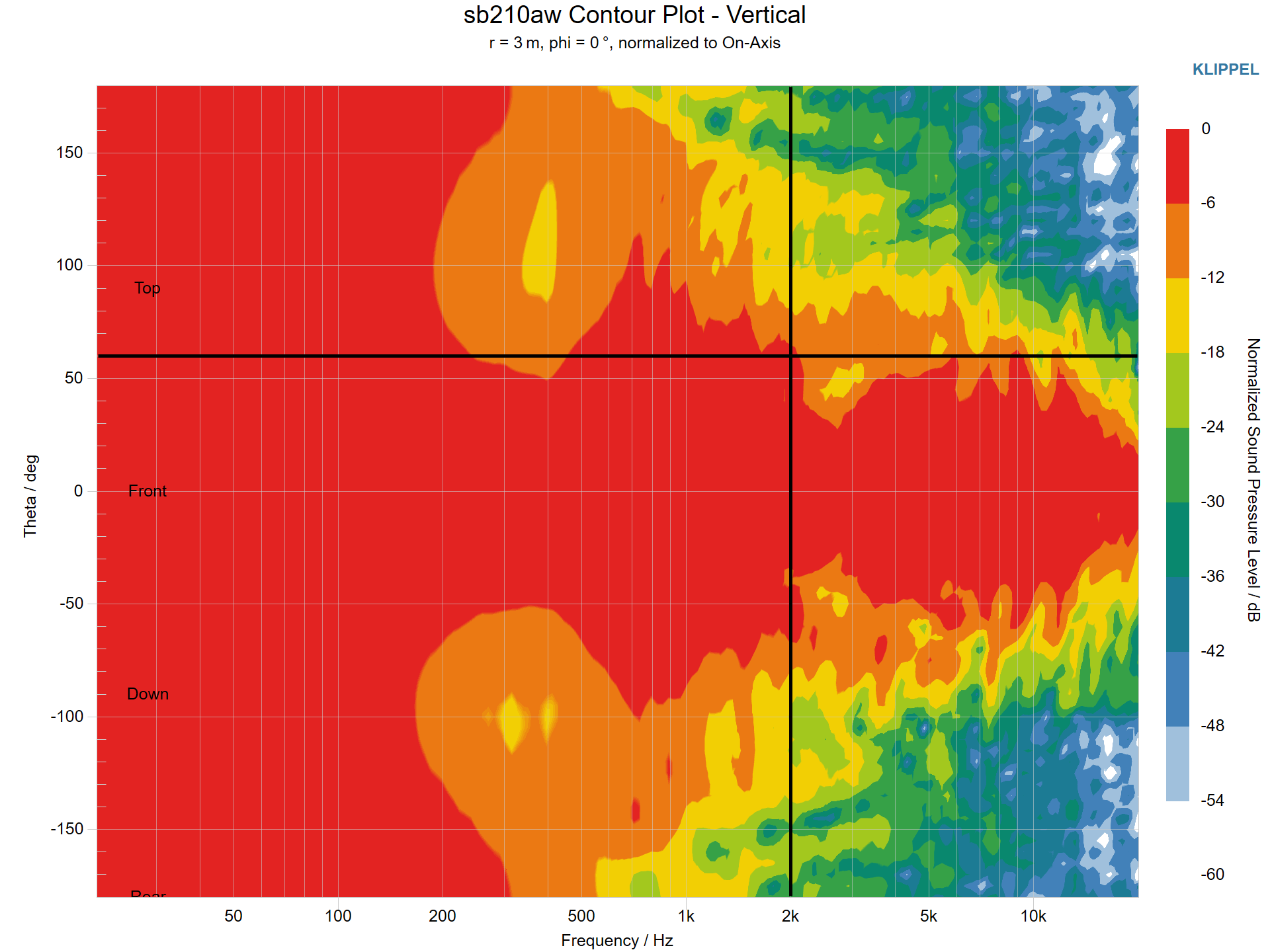

The “Directivity Contour Plot” shows the speaker’s dispersion characteristics using color to represent output magnitude. A quick inspection of the sb210aw’s contour plot reveals its very wide, but very uniform dispersion.
BUT! Even more importantly, notice that the VERTICAL coverage exactly matches the HORIZONTAL – meaning the speaker can be used in any orientation with the same stellar results.
Wide dispersion produces a reverberant field that is in harmony with the direct field insuring clean, high resolution sound literally everywhere. Your ear-brain system is not confused by reverberation that is of much lower fidelity than the direct sound. The improvement in perceived sound quality is not subtle.

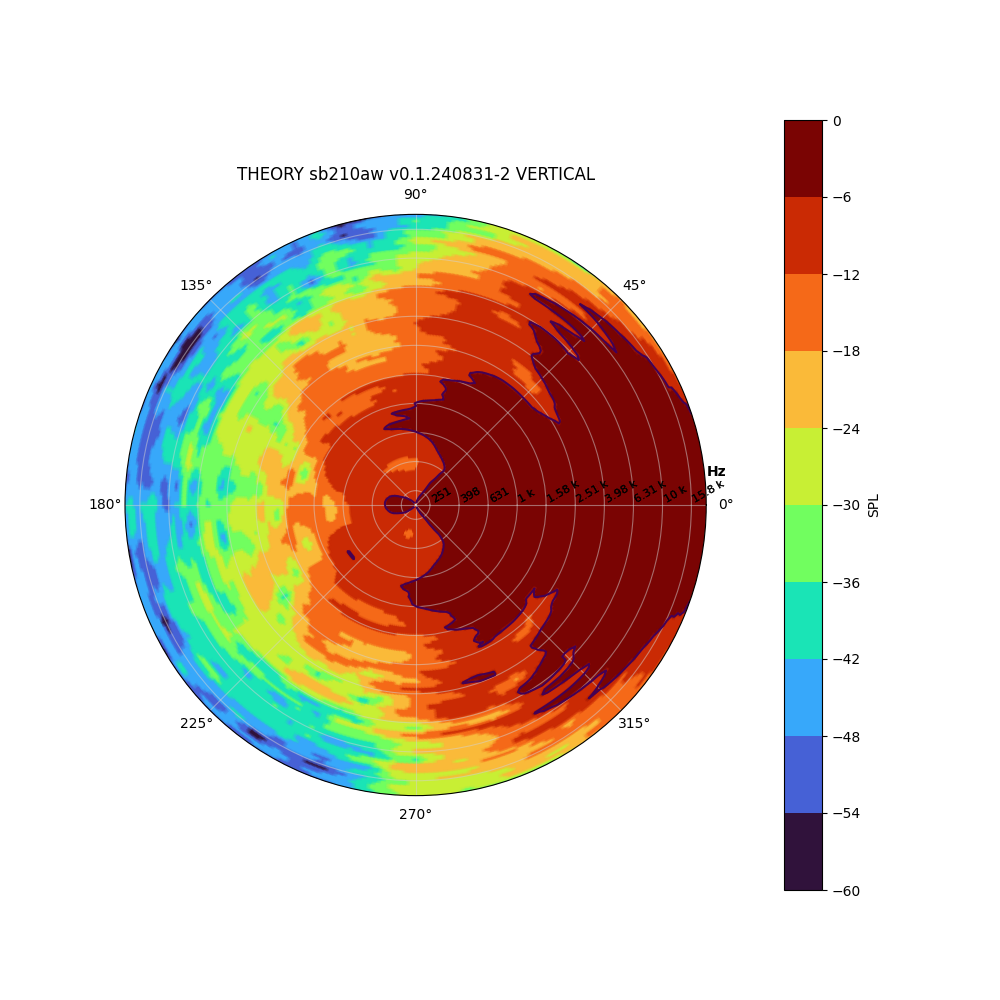

AS ABOVE, MORE INTUITIVELY RENDERED.
Another “view” of the sb210aw’s wide and genuinely conical coverage. It doesn’t get much better than this.
LISTEN WITH YOUR EYES.
sb210aw ACCESSORIES
YOU’RE INVITED TO THE (3rd) PARTY.
The sb210aw ships with included z-clip flat surface mount brackets but also has integral mount hole patterns for several high-quality third-party speaker mounts. Don’t be surprised if you find yourself using this highly capable slender speaker everywhere.
(sb25 model shown.)
