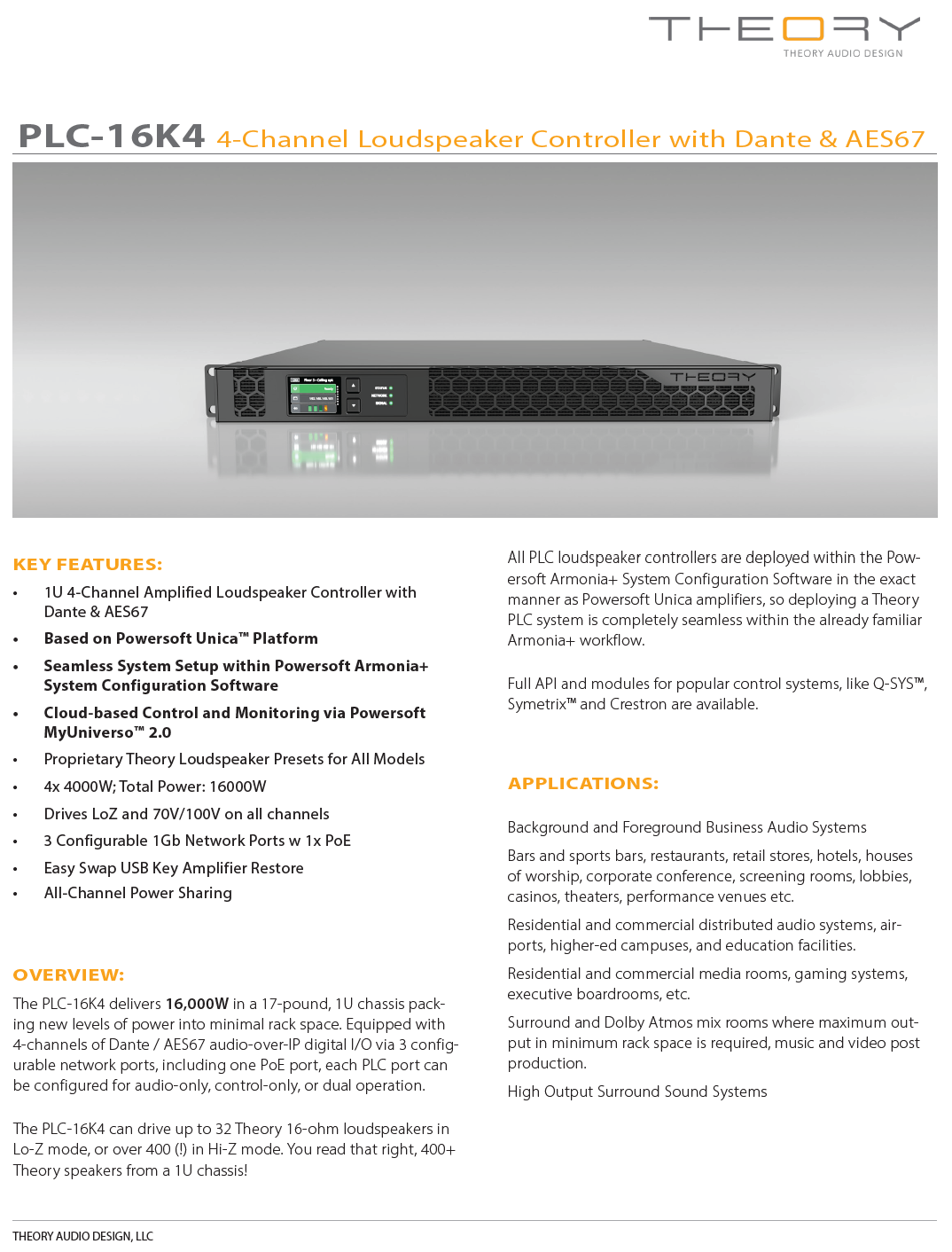

NEW! PLC-16K4 - 4-CHANNEL AMPLIFIED LOUDSPEAKER CONTROLLER WITH DANTE & AES67

Name: Theory PLC-16K4 - 4-CHANNEL LOUDSPEAKER CONTROLLER - WITH DANTE/AES67 — Theory Professional
Brand: Theory Professional
Availability: InStock

$0.00

The PLC-16K4 delivers 16000W in a 17-pound, 1U chassis. Capable of delivering 1300W into 16-ohms (symmetrical channel loading), and 1400W into 16-ohms (asymetrical channel loading), 2500W into 8-ohms (symmetrical), 2700W into 8-ohms (asymmetrical), 3000W into 70V (symmetrical), 3500W into 70V (asymmetrical), 4000W into 100V, 2, and 4-ohms (symmetrical), 4500W into 2-ohms (asymmetrical), 5000W into 100V (asymmetrical), 5200W into 4-ohms (asymmetrical), and 8000W bridged into 4 and 8-ohms (symmetrical), this loudspeaker controller packs new levels of power into minimal rack space.

The PLC-16K4 is equipped with 4-channels of Dante / AES67 audio-over-IP digital I/O via 3 configurable network ports, including one PoE port. Each port can be configured for audio-only, control-only or dual operation.

The PLC-16K4 can drive up to 32 Theory 16-ohm loudspeakers in Lo-Z mode, or over 400 (!) in Hi-Z mode. You read that right, 400+ Theory speakers from a 1U chassis!

The PLC loudspeaker controllers are deployed within Powersoft Armonia+ System Configuration Software in the exact manner as Powersoft Unica amplifiers, so deploying a Theory PLC system is completely seamless within the already-familiar Armonia+ workflow.

Full API and modules for popular control systems like Q-SYS™, Symetrix™, and Crestron are available.

KEY FEATURES:

1U 4-Channel Amplified Loudspeaker Controller with Dante & AES67
Based on Powersoft Unica™ Platform
Seamless System Setup within Powersoft Armonia+ System Configuration Software
Cloud-based Control and Monitoring via Powersoft MyUniverso™ 2.0
Proprietary Theory Loudspeaker Presets for All Models
4× 4000W; Total Power: 16000W
Drives LoZ and 70V/100V on all channels
3 Configurable 1Gb Network Ports w 1x PoE
Easy Swap USB Key Amplifier Restore
All-Channel Power Sharing

AVAILABLE SOON! - JUNE 2026

The PLC-16K4 can drive up to 32 Theory 16-ohm loudspeakers in Lo-Z mode, or over 400 (!) in Hi-Z mode. You read that right, 400+ Theory speakers from a 1U chassis!

Full API and modules for popular control systems like Q-SYS™, Symetrix™, and Crestron are available.

KEY FEATURES:

1U 4-Channel Amplified Loudspeaker Controller with Dante & AES67
Based on Powersoft Unica™ Platform
Seamless System Setup within Powersoft Armonia+ System Configuration Software
Cloud-based Control and Monitoring via Powersoft MyUniverso™ 2.0
Proprietary Theory Loudspeaker Presets for All Models
4× 4000W; Total Power: 16000W
Drives LoZ and 70V/100V on all channels
3 Configurable 1Gb Network Ports w 1x PoE
Easy Swap USB Key Amplifier Restore
All-Channel Power Sharing

AVAILABLE SOON! - JUNE 2026

GOTTA HAVE IT?

Click WHERE TO BUY above to find a Theory partner near you.

PLC-16K4 SPECIFICATIONS


Description:	4-Channel Amplified Distribution Loudspeaker Controller with Dante & AES67
	1U Chassis
	Control and Monitoring via Powersoft Armonia+ and MyUniverso interfaces
	LoZ and HiZ on all Channels
Operation:	LoZ and HiZ (70V/100V) Operation
Inputs:	4 x Balanced Analog Audio
	4 x Dante / AES67 Digital Audio
Outputs:	4 x Speaker Outputs
	4 x Dante / AES67 Digital Audio
Network:	3 x Gigabit Ethernet Port
	Switched Mode, Split-Redundant Mode
	Armonia+, MyUniverso Remote Interfaces
Trigger:	+12VDC
Audio Operation:	48kHz/24-bit
On-Board DSP:	48kHz/24-bit
DSP Features:	Loudspeaker Processing For All Theory Models, plus:
	50 On-board Recallable Amplifier Snapshots
	Signal Routing Including Priority Automatic Routing
	Parametric EQ Filters including FIR, IIR
	Crossovers
	Gain
	Delay
	Polarity
	Peak, RMS (voltage, current), DynamicEQ Limiters
Frequency Response:	20Hz-20kHz, +0.0dB, - 1.0dB @ 8-ohms
Power Output:	4x 4,000W* @ 100V, 4 and 2-ohms (symmetrical channel loading)
	4x 1,300W @ 16-Ohms (symmetrical channel loading)
	4x 2,500W @ 8-ohms (symmetrical channel loading)
	4x 3,000W @ 70V (symmetrical channel loading)
	2x 8000W* (BTL) @ 4, 8-ohms (symmetrical channel loading)
	4x 5,000W** @ 100V and 4-ohms (asymmetrical channel loading)
	4x 1,400W** @ 16-Ohms (asymmetrical channel loading)
	4x 3,000W** @ 70V (asymmetrical channel loading)
	220Vpeak Maximum Unclipped Output Voltage
	80A peak Maximum Output Current
Voltage Gain:	Variable
Input Sensitivity:	3.9Vrms; 14dBu
Maximum Input Level:	>+24dBu
Power Requirements:	Standby: 20W Typical
	(1/8 power, all ch. driven @ 4-ohms): 1,875W
Idle Noise Analog Inputs:	-72dBV(A) typical
Idle Noise Dante Inputs:	-76dBV(A) typical
Signal to Noise Ratio Analog Inputs:	116dB(A)
Signal to Noise Ratio Dante Inputs:	120dB(A)
THD+N (from 0.1W to Half Power):	<0.05%
SMPTE IMD (from 0.1W to Half Power):	<0.01%
Damping Factor:	>2500 20Hz - 500Hz
AC Operation:	80-265VAC @ 50/60Hz
Terminals:	High-Current Output Euroblock Connectors (up to 10-Gauge Wire)
Outdoor Capability:	IP20
Mounting Points:	Rack Mount Ears Included
Finish:	Matte Black
Dimensions:	1.74" H x 19.3" W x 15.8" D (44.3mm H x 489mm W x 400mm D)
Weight:	17.4 lbs. (7.9 kg)
Included Accessories:	Euro Connectors, AC Mains Cord, Rack Ears
