iws12-BOLLARD SPECIFICATIONS

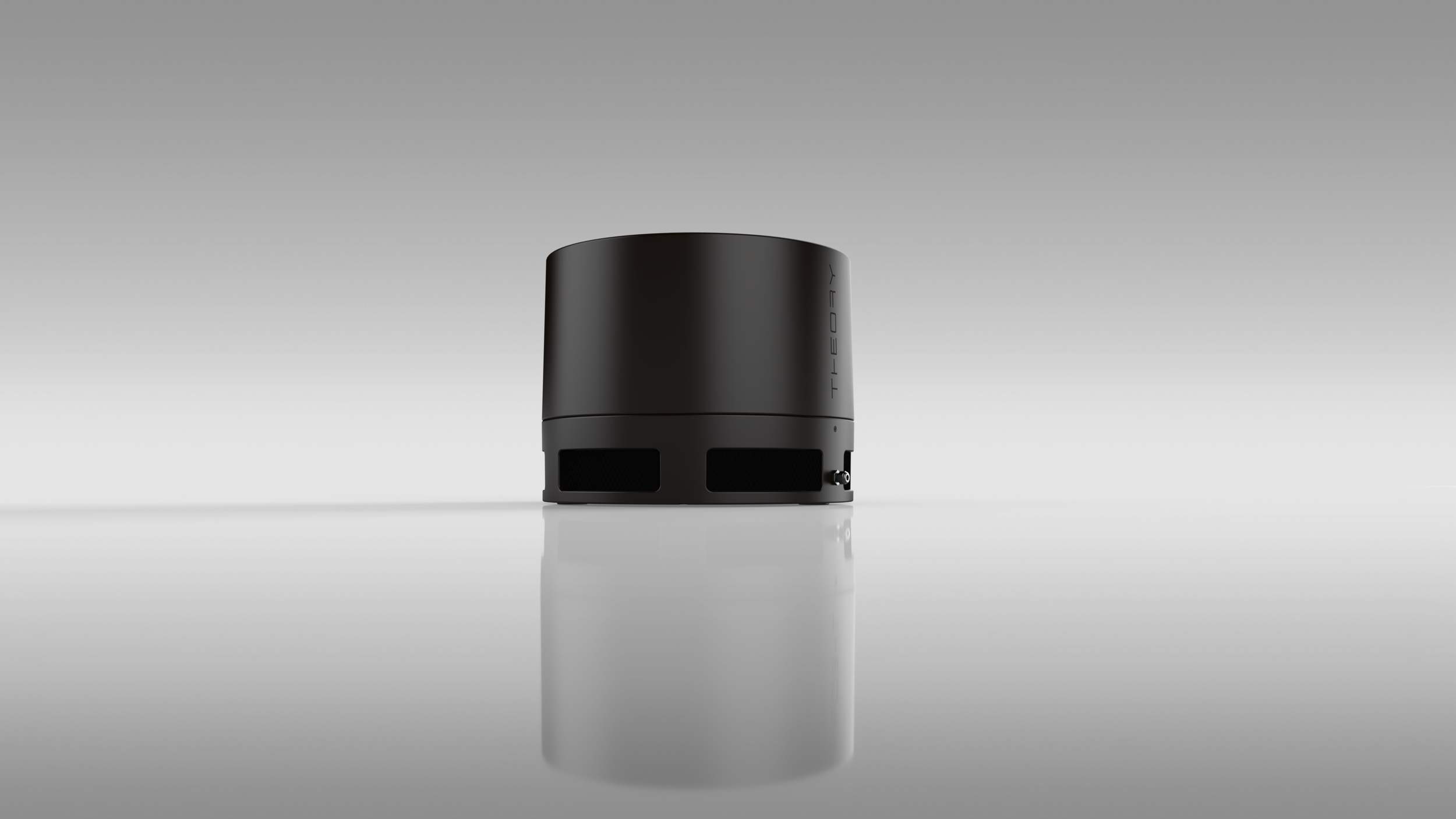

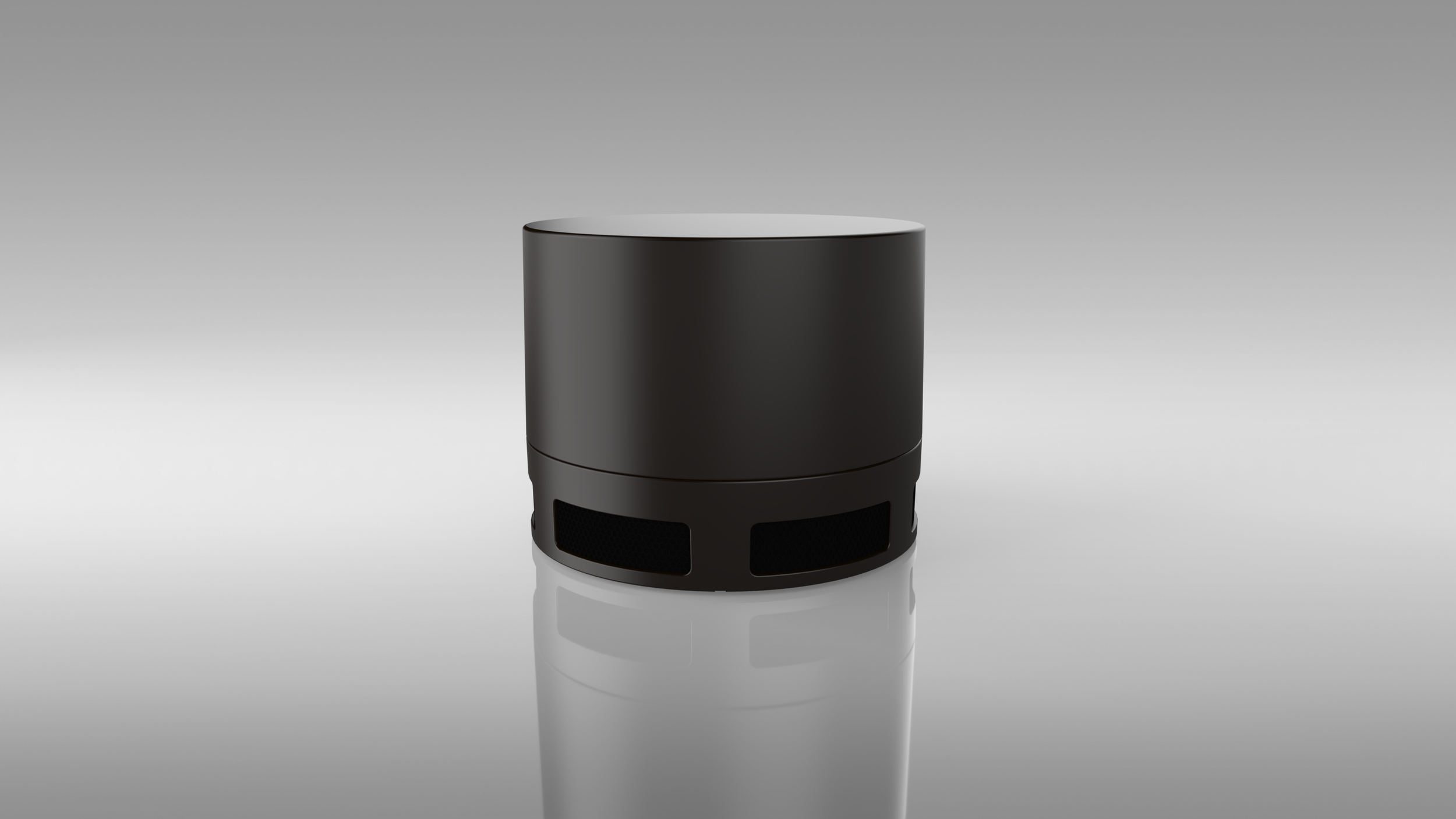

| Description: | 12” High-Output Outdoor Bollard Subwoofer (DRIVER AND ENCLOSURE SOLD SEPARATELY) |
| Operation: | Passive, Requires 1 Theory ALC Amp channel |
| DSP Requirements: | Requires Model-Specific Theory-Certified DSP Loudspeaker Processing |
| Drivers: | 1 x 12" Theory 1400W 4” Voice Coil Long Throw Woofer |
| Enclosure: | Molded Composite |
| Terminals: | Spring Terminals |
| Mounting: | Solid Surface or Soil Mounting (with included threaded spikes) |
| Outdoor Capability: | Indoor and Outdoor Use |
| Bandwidth: | 29.5Hz -125Hz, - 3dB |
| 27Hz - 145Hz, -6dB | |
| 25Hz - 167Hz, -10dB (Relates most closely to subjective evaluation) | |
| Sensitivity: | 95.5 dB |
| Power Handling: | 700W (AES) |
| 1400 (Continuous); | |
| 2800 (Peak) | |
| Minimum recommended Power: | 250W |
| Max Output: | 124 dB SPL / 1m |
| Nominal Impedance: | 8-ohms |
| Colors: | Dark Espresso |

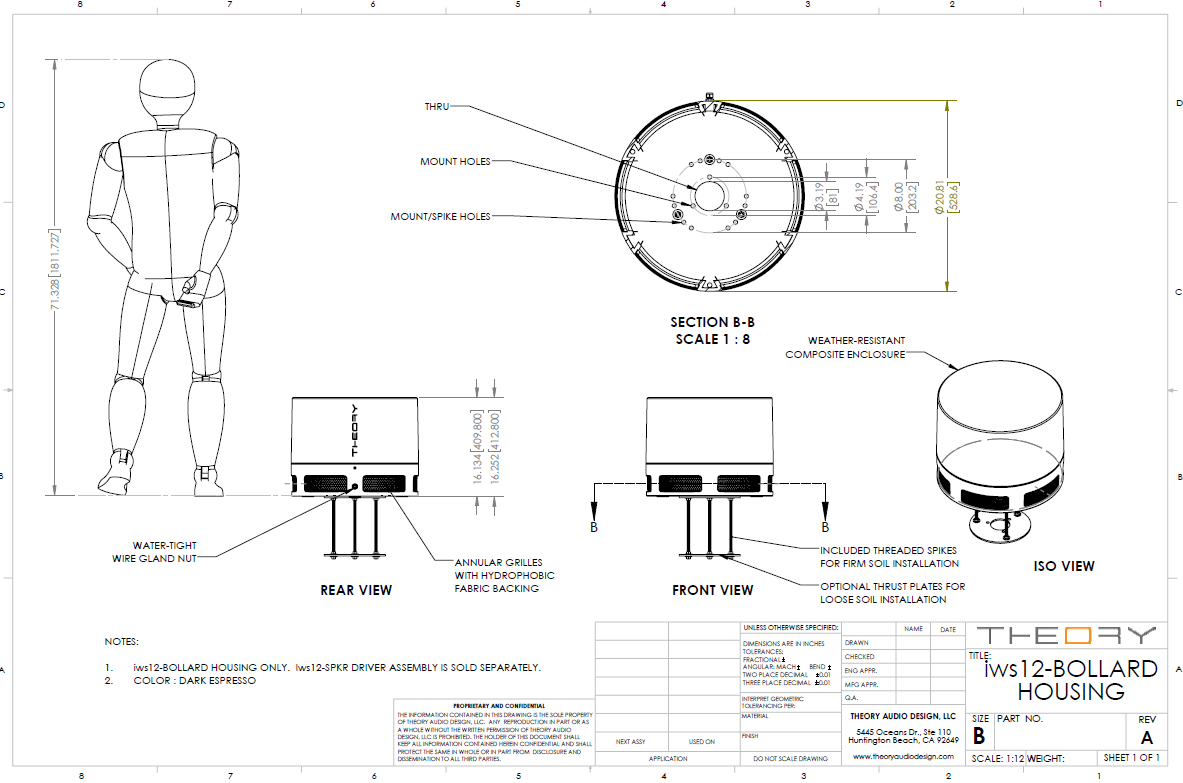

| Dimensions: | 20.9" Diamter x 16.3” H (530mm Diamter x 413mm H) |
| Weight: | 69 lbs. (31.3 kg) Including iws12-SPKR Driver |
| 41 ibs. (18.6 kg) Housing Only | |
| Included Accessories | 12" Stainless Steel Soil Spikes |
| Optional Accessories | Burial Thrust Plate for Loose Soil Mounting |
