The ic6 AcousticCore™
ic6 BOLLARD SPECIFICATIONS
| Description: | 6.5” High-output Weather Resistant Bollard Loudspeaker System |
| Operation: | Passive, Requires 1 Theory Loudspeaker Controller Amp Channel |
| 16-ohms or 70V/100V Operation, Selectable | |
| DSP Requirements: | Requires Model-Specific Theory-Certified DSP Loudspeaker Processing |
| Drivers: | 1 x 6.5" THEORY Coaxial Driver: |
| 6.5” Carbon Fiber Low Frequency Driver | |
| 1.4" THEORY AdvancedPoly™ Compression Driver | |
| Enclosure: | Molded Composite Frame with Powder Coated Stainless Steel Decorative Sleeve |
| Terminals: | Euroblock Connector with Parallel Output |
| Outdoor Capability: | Indoor and Outdoor Use |
| Mounting: | Solid Surface or Soil Mounting (with included threaded spikes) |
| Bandwidth: | 68Hz -23kHz, -6dB; |
| 54Hz - 25kHz, -10dB | |
| Coverage: | 360 Degrees |
| Sensitivity: | 92dB (LF); 106dB (HF) SPL/2.83V/1m |
| Power Handling: | 100W (AES); |
| 200W (Continuous); | |
| 400W (Peak) | |
| Minimum Recommended Power: | 50W rms |
| Maximum Output: | 112dB SPL / 1m (based on AES power rating) |
| 118dB SPL / 1m (peak) | |
| Nominal Impedance: | 16-ohms; Hi-Z (70V/100V) Selectable |
| Transformer Taps: | 60W, 30W, 15W, (7.5W, 70V) |
| Colors: | Dark Espresso |
| Dimensions: | Speaker (at top): 10.7" DIAMETER (271 mm) x 32.3" H (819 mm) |
| Speaker (at base) : 11.8" DIAMETER (298mm) x 32.3" H (819mm) | |
| Net Weight: | 49.5 lbs. (22.45kg) Including ic6 Speaker |
| 37.0 lbs. (16.78kg) Bollard Housing Only | |
| Included Accessories: | 12" Stainless Steel Soil Spikes |
| Optional Accessories: | Burial Thrust Plates for Loose Soil Mounting |
ic6 BOLLARD MEASUREMENTS
(All measurements made with Klippel Near Field Scanner in free space)
THE WORLD IS FLAT.
The ic6-BOLLARD projects linear, accurate and detailed sound in literally every direction. Don’t worry if you have to place them near a boundary – the reflected energy has the exact same flat and accurate frequency content as the direct energy and blends seamlessly into one, louder amazing, BIG AND OPEN, sound.

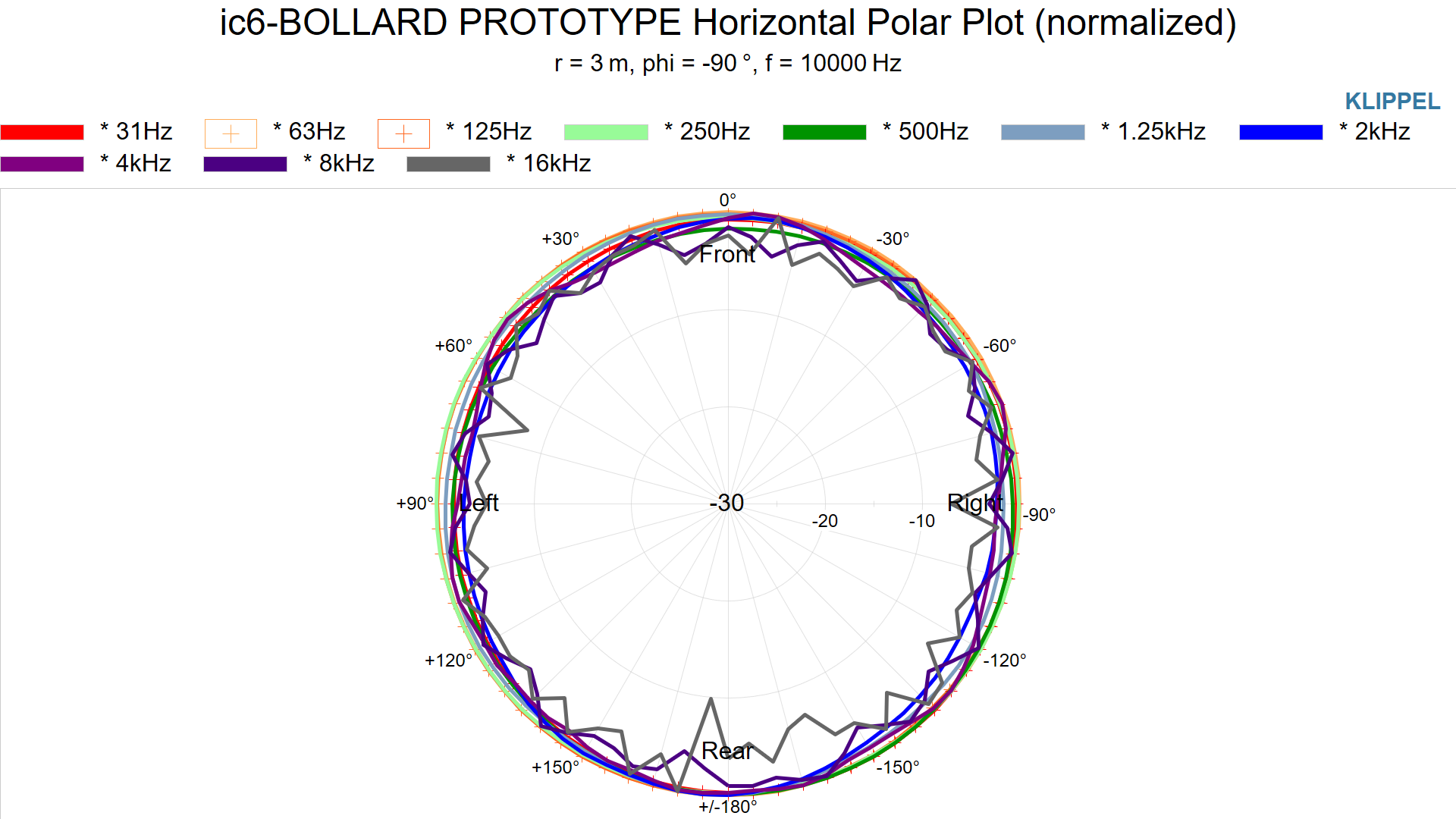

A PERFECT CIRCLE.
The ic6-BOLLARD’s horizontal coverage is literally a perfect circle.
VERTICALLY IN CONTROL.
The ic6-BOLLARD vertical polar response, plotted as a Polar Controur Map, reveals the vertical dispersion of the loudspeaker. Note that the FRONT of the speaker is plotted at 3 o’clock.
The ic6-BOLLARD is designed to throw the sound out, far, and slightly up to the listeners ears.
BORING RED BOX.
The “Directivity Contour Plot” shows the speaker’s dispersion characteristics using color to represent output magnitude. A quick inspection of the ic6-BOLLARD’s Directivity Contour Plot almost looks like a mistake.
But it’s not.
The 360° coverage is that uniform.

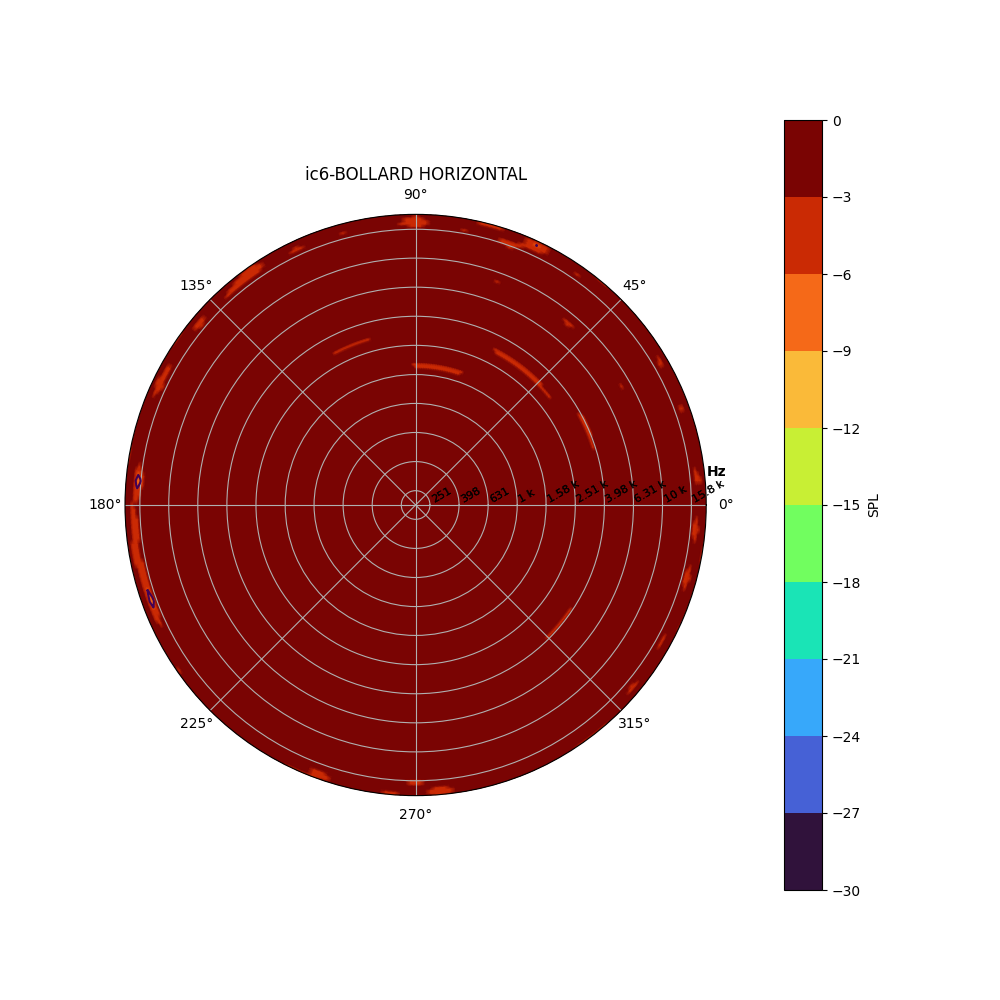

BORING RED….CIRCLE.
Here is the data shown in the Directivity Contour Plot shown again on a polar map, making it easier to “see” how the sound is dispersed from the loudspeaker itself (as viewed from above the speaker looking straight down).
A perfect circle, indeed.
