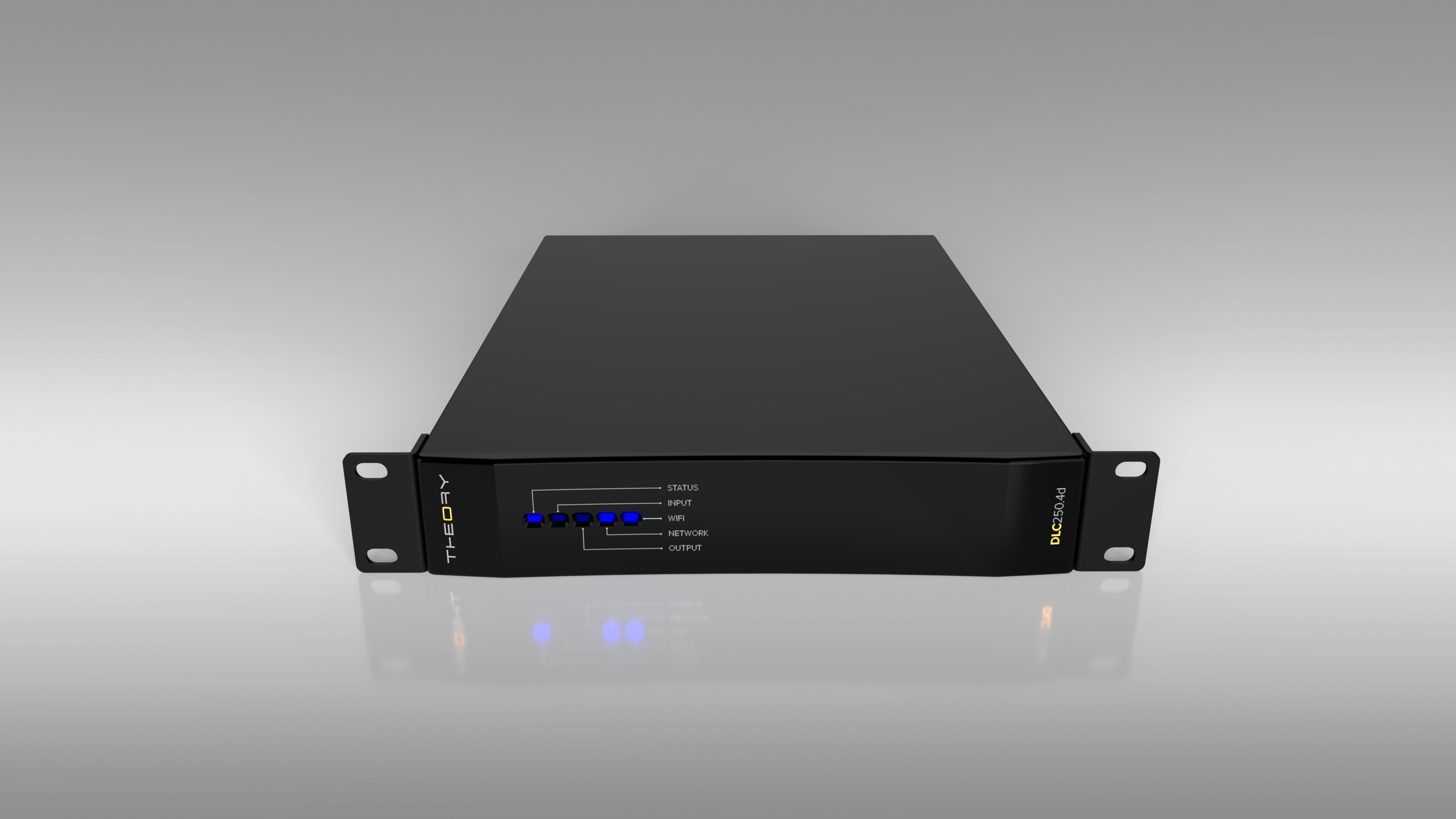

DLC-2504d FRONT ABOVE GRAY FADE.png Image 5 of 10
DLC-2504d FRONT ABOVE GRAY FADE.png
DLC-2504d REAR VIEW GRAY FADE 21x9.png Image 6 of 10
DLC-2504d REAR VIEW GRAY FADE 21x9.png
DLC TRIO MODEL NUMBERS CLOSEUP 21x9.png Image 7 of 10
DLC TRIO MODEL NUMBERS CLOSEUP 21x9.png
DLC AMP STACK FRONT VIEW GRAY FADE 16x9.png Image 8 of 10
DLC AMP STACK FRONT VIEW GRAY FADE 16x9.png
DLC TRIO FRONT VIEW GRAY FADE 16x9.png Image 9 of 10
DLC TRIO FRONT VIEW GRAY FADE 16x9.png
DLC AMP STACK RIGHT PERSPECTIVE GRAY FADE.png Image 10 of 10
DLC AMP STACK RIGHT PERSPECTIVE GRAY FADE.png
DLC-2504d FRONT PERSPECTIVE GRAY FADE.png
DLC-2504d PAIR PERSPECTIVE GRAY FADE 21x9.png
DLC-2504d FRONT VIEW GRAY FADE.png
DLC-2504d REAR PERPECTIVE GRAY FADE 21x9.png
DLC-2504d FRONT ABOVE GRAY FADE.png
DLC-2504d REAR VIEW GRAY FADE 21x9.png
DLC TRIO MODEL NUMBERS CLOSEUP 21x9.png
DLC AMP STACK FRONT VIEW GRAY FADE 16x9.png
DLC TRIO FRONT VIEW GRAY FADE 16x9.png
DLC AMP STACK RIGHT PERSPECTIVE GRAY FADE.png

DLC-250.4d AMPLIFIED LOUDSPEAKER CONTROLLER WITH DANTE & AES67

$75.00

Just like its predecessor (the DLC-250.4), the DLC-250.4d is small but mighty and it’s now even mightier with the addition of Dante and AES67. Capable of delivering 250W into 4, 8, and 16-ohms from any channel pair, or 125W into 4, 8 or 16-ohms all channels driven, this little 6.5lb., one-half rack loudspeaker controller packs a punch into minimal rack space. If that weren’t enough, the DLC-250.4d can drive 70V/100V hi-Z loudspeakers direct - no internal transformer required.

The DLC-250.4d is equipped with Dante / AES67 audio-over-IP digital I/O making setting up and deploying even complex distributed audio systems painless and bullet-proof. No bulky analog audio cables are required.

The DLC-250.4d can drive up to 16 Theory 16-ohm loudspeakers in Lo-Z mode, or up to 64 in Hi-Z mode - all from a half rack chassis!

The DLC loudspeaker controllers from Theory can be configured via its on-board web interface accessible via wired Ethernet, or via its on-board Wifi access point and includes matrix mixing, priority audio routing and ducking, parametric EQ, delay, gain and limiter DSP objects to make system optimization easy.

Full API and modules for AMX, Control4, Crestron, Crestron Home, ELAN, Q-SYS, and RTI available.

Quantity:
Add To Cart

Just like its predecessor (the DLC-250.4), the DLC-250.4d is small but mighty and it’s now even mightier with the addition of Dante and AES67. Capable of delivering 250W into 4, 8, and 16-ohms from any channel pair, or 125W into 4, 8 or 16-ohms all channels driven, this little 6.5lb., one-half rack loudspeaker controller packs a punch into minimal rack space. If that weren’t enough, the DLC-250.4d can drive 70V/100V hi-Z loudspeakers direct - no internal transformer required.

The DLC-250.4d is equipped with Dante / AES67 audio-over-IP digital I/O making setting up and deploying even complex distributed audio systems painless and bullet-proof. No bulky analog audio cables are required.

The DLC-250.4d can drive up to 16 Theory 16-ohm loudspeakers in Lo-Z mode, or up to 64 in Hi-Z mode - all from a half rack chassis!

The DLC loudspeaker controllers from Theory can be configured via its on-board web interface accessible via wired Ethernet, or via its on-board Wifi access point and includes matrix mixing, priority audio routing and ducking, parametric EQ, delay, gain and limiter DSP objects to make system optimization easy.

Full API and modules for AMX, Control4, Crestron, Crestron Home, ELAN, Q-SYS, and RTI available.

Just like its predecessor (the DLC-250.4), the DLC-250.4d is small but mighty and it’s now even mightier with the addition of Dante and AES67. Capable of delivering 250W into 4, 8, and 16-ohms from any channel pair, or 125W into 4, 8 or 16-ohms all channels driven, this little 6.5lb., one-half rack loudspeaker controller packs a punch into minimal rack space. If that weren’t enough, the DLC-250.4d can drive 70V/100V hi-Z loudspeakers direct - no internal transformer required.

The DLC-250.4d is equipped with Dante / AES67 audio-over-IP digital I/O making setting up and deploying even complex distributed audio systems painless and bullet-proof. No bulky analog audio cables are required.

The DLC-250.4d can drive up to 16 Theory 16-ohm loudspeakers in Lo-Z mode, or up to 64 in Hi-Z mode - all from a half rack chassis!

The DLC loudspeaker controllers from Theory can be configured via its on-board web interface accessible via wired Ethernet, or via its on-board Wifi access point and includes matrix mixing, priority audio routing and ducking, parametric EQ, delay, gain and limiter DSP objects to make system optimization easy.

Full API and modules for AMX, Control4, Crestron, Crestron Home, ELAN, Q-SYS, and RTI available.

GOTTA HAVE IT?

Click BUY NOW below, or WHERE TO BUY above to find a Theory partner near you.

BUY NOW

DLC-250.4d SPECIFICATIONS



Description:4-Channel Amplified Distribution Loudspeaker Controller with Dante & AES67
Half-Rack Chassis
IP Control via Ethernet or Built-In WiFi Access Point
Power Sharing Between Neighboring Channels
Operation: LoZ and HiZ (70V/100V) Operation
Inputs:4 x Balanced Analog Audio
4 x RCA Unbalanced Analog Audio
1 x S/PDIF Digital Audio (stereo)
4 x Dante / AES67 Digital Audio
Outputs:4 x Speaker Outputs
S/PDIF Digital Audio (stereo)
4 x Dante / AES67 Digital Audio
Trigger:+12VDC
Audio Operation:48kHz/24-bit
On-Board DSP:48kHz/32-bit
DSP Features:Loudspeaker Processing For All Theory Models, plus:
Input Matrix Mixer
5 Parametric Input EQ Filters
Input Trim
Stereo/Mono Inputs and Zones
Signal Routing Including Priority Automatic Routing
Audio Ducking
10 Parametric Output EQ Filters
Crossovers
Gain
Delay
Polarity
Peak and RMS Limiters
Frequency Response:20Hz-20kHz, +/-0.25dB
Power Output:250W per channel @ 4, 8, 16-ohms and 70V/100V
125W per channel @ 4, 8, 16-ohms all channels driven
Voltage Gain:Variable
Input Sensitivity (selectable):+14dBu
+4dBu
-10dBV (Unbalanced RCA)
Microphone
Power Requirements:Standby: <1W
(1/8 power, all ch. driven): 70W
Idle Noise(A-Wt):-78dBV
Signal to Noise Ratio:>106dB
Distortion (1kHz, 1dB below max output):<0.02%
AC Operation:100V-240VAC, 50-60Hz
Terminals:Eurblock Connectors
Outdoor Capability: Indoor Use Only
Mounting Points:Surface or Rack Mount (with included/optional accessories)
Finish:Matte Black
Dimensions: 1.75" H x 8.7" W x 11.7" D (44mm H x 221mm W x 297mm D)
Net Weight:6.5 lbs. (2.95 kg)
Included Accessories:Single and Dual Unit Rack Mount Kit
Optional Accessories:Surface Mount Kit


DLC-250.4d USER INTERFACE



DLC DASHBOARD INTERFACE (Copy)
DLC DASHBOARD INTERFACE (Copy)
DLC INPUT CONFIGURATION (Copy)
DLC INPUT CONFIGURATION (Copy)
DLC OUTPUT CONFIGURATION AND EQ (Copy)
DLC OUTPUT CONFIGURATION AND EQ (Copy)
DLC ONBOARD SPEAKER LIBRARY (Copy)
DLC ONBOARD SPEAKER LIBRARY (Copy)
DLC INDIVIDUAL SPEAKER PRESET (Copy)
DLC INDIVIDUAL SPEAKER PRESET (Copy)
DLC LAN SETUP (Copy)
DLC LAN SETUP (Copy)
DLC WIFI SETUP (Copy)
DLC WIFI SETUP (Copy)
DLC GPIO SETUP (Copy)
DLC GPIO SETUP (Copy)
DLC GPIO CONFIGURATION (Copy)
DLC GPIO CONFIGURATION (Copy)
DLC POWER MANAGEMENT CONFIGURATION (Copy)
DLC POWER MANAGEMENT CONFIGURATION (Copy)
DLC ZONE SETUP.png
DLC DASHBOARD INTERFACE (Copy) DLC INPUT CONFIGURATION (Copy) DLC OUTPUT CONFIGURATION AND EQ (Copy) DLC ONBOARD SPEAKER LIBRARY (Copy) DLC INDIVIDUAL SPEAKER PRESET (Copy) DLC LAN SETUP (Copy) DLC WIFI SETUP (Copy) DLC GPIO SETUP (Copy) DLC GPIO CONFIGURATION (Copy) DLC POWER MANAGEMENT CONFIGURATION (Copy) DLC ZONE SETUP.png


DLC-250.4d DOWNLOADS

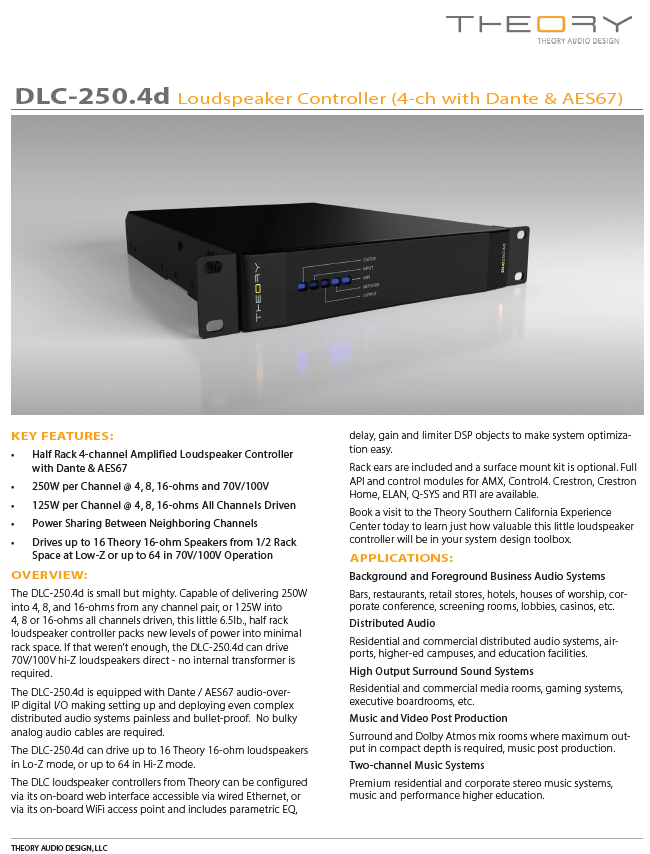

DLC-250.4d Data Sheet

DOWNLOAD PDF

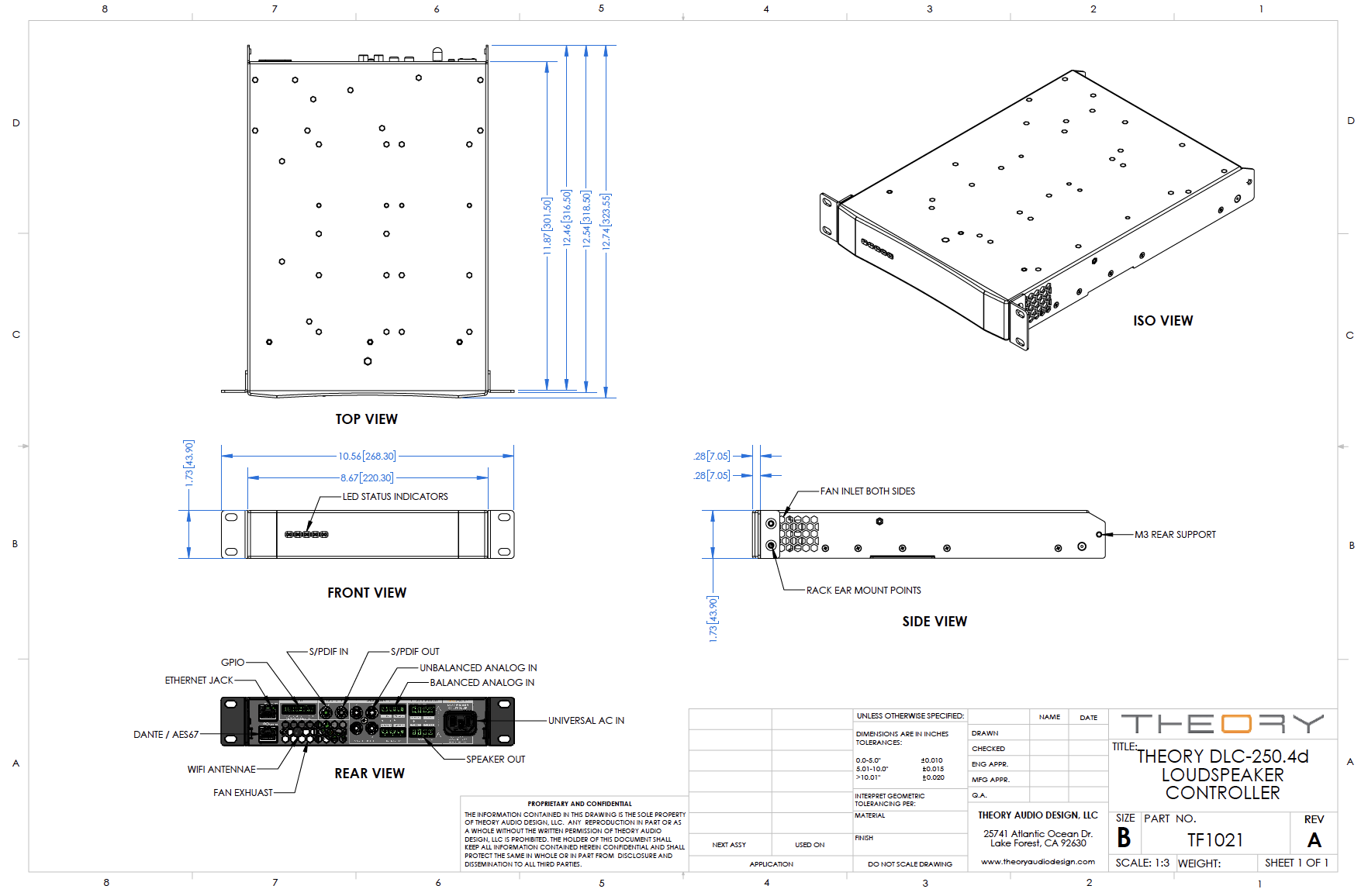

DLC-250.4d 3-View Drawings

DOWNLOAD PDF
DOWNLOAD DWG





DLC-250.4d Quick Start Installation Guide

DOWNLOAD PDF


DLC-250.4d User Manual

DOWNLOAD PDF




DLC Third Party Control Drivers

DOWNLOAD AMX DRIVER
DOWNLOAD CONTROL4 DRIVER
DOWNLOAD CRESTRON DRIVER
DOWNLOAD CRESTRON HOME DRIVER
DOWNLOAD ELAN DRIVER
DOWNLOAD Q-SYS DRIVER
DOWNLOAD RTI DRIVER
DOWNLOAD SYMETRIX DRIVER


DLC-250.4d GALLERY


DLC-250.4d 4-Channel Amplified Loudspeaker Controller with Dante & AES67
